AS_WirelessBattery_360PixelTube_SPI_RGBWA_D50_36P216L_1.7M or 32P192L_1.5M

Product Overview:

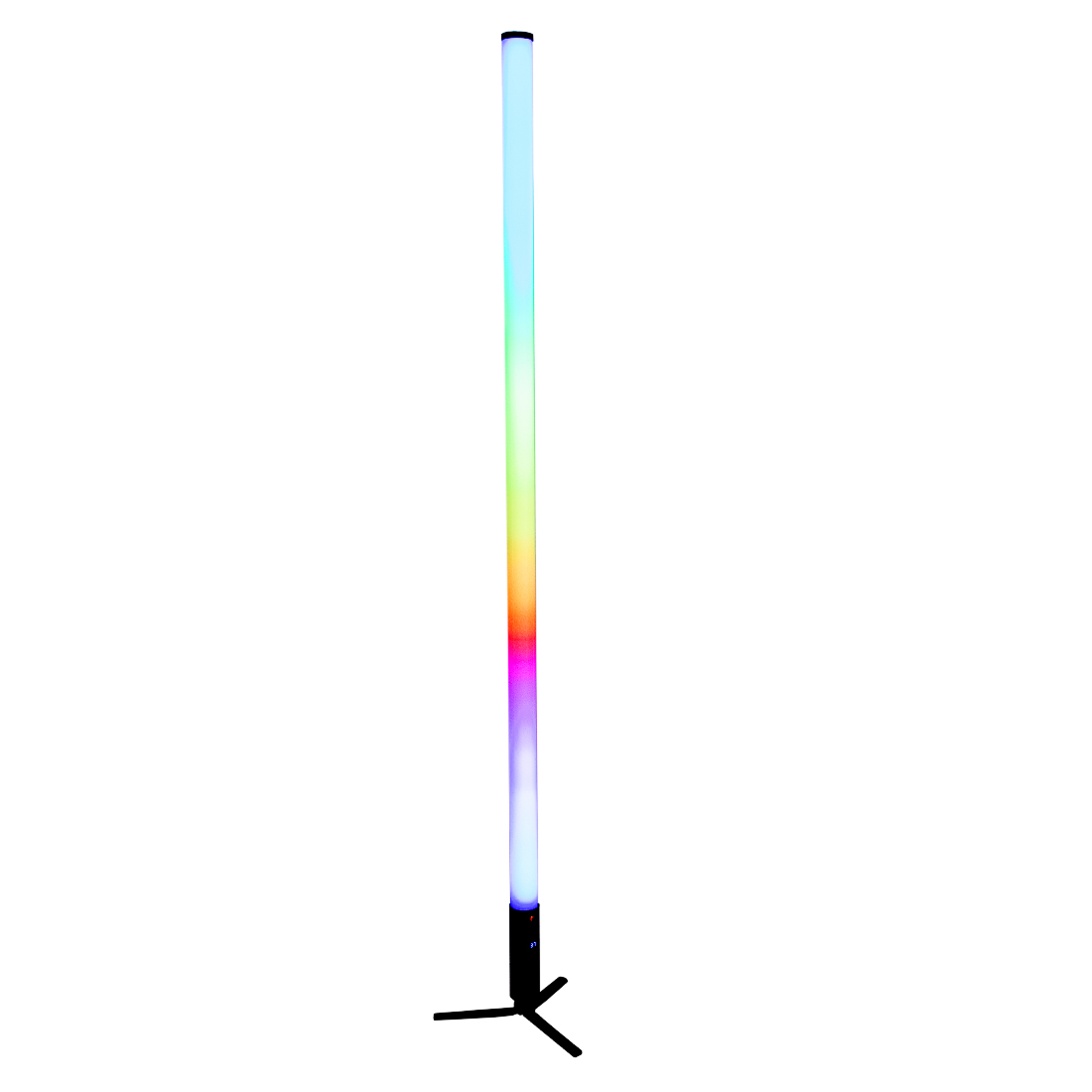

V1 1.7M Wireless Battery 360 Pixel Tube

  • Built-in Effects: 108 modes
  • Viewing Angle: 360°
  • Diyplay: Digital tube display(show power only)
  • Touch Button 1key: power button
  • Stroboscopic Rate: 0-20Hz
  • LED Type: SMD5050 5in1
  • Color Range: Full Color RGBWA (RGB+CCT2800–6500K)

LED Specifications

  • LEDs: 108 (216 doubled)
  • Pixels: 36

Control Specifications

  • DMX Channels: DMX-14CH/Artnet-180CH
  • Control Modes: DMX512/Artnet/sACN/APP/Sounds
  • Control APP:Luminair
  • Wireless Control Signal Transmission Distance: 15~50 meters

Power and Battery Specifications

  • Input: Charger 100~240VAC 50/60Hz (output DC)
  • Power Consumption: 43W
  • Charging Time: 3~5 hours
  • Battery Working Time:
    • Full RGBWA: 2 hours full color open
    • Color Changing: 8-12 hours

Physical Specifications

  • Material: Aluminum + Plastic
  • PC Cover Color: Milky
  • Diameter: 50mm
  • Lengths: Tube 1500mm+Battery Shell200MM total 1700MM
  • Protection Level: IP66
  • Battery Brand: NCR
  • Battery Mode: 18650 3400mAh 24V
  • Battry Certificate: MSDS UN38.3 CE RoHS
  • Lifetime: Cherging and discharging can reach more than 1000 times

Included Accessories

  • 8x Wireless Battery 360 Pixel Tubes
  • 8x Chargers (EU/US/CN/UK/AU plug options available)
  • 8x Adjustable Tripod Floor Stands
  • 1x 2.4G WiFi Router
  • 1x WiFi DMX Transmitter

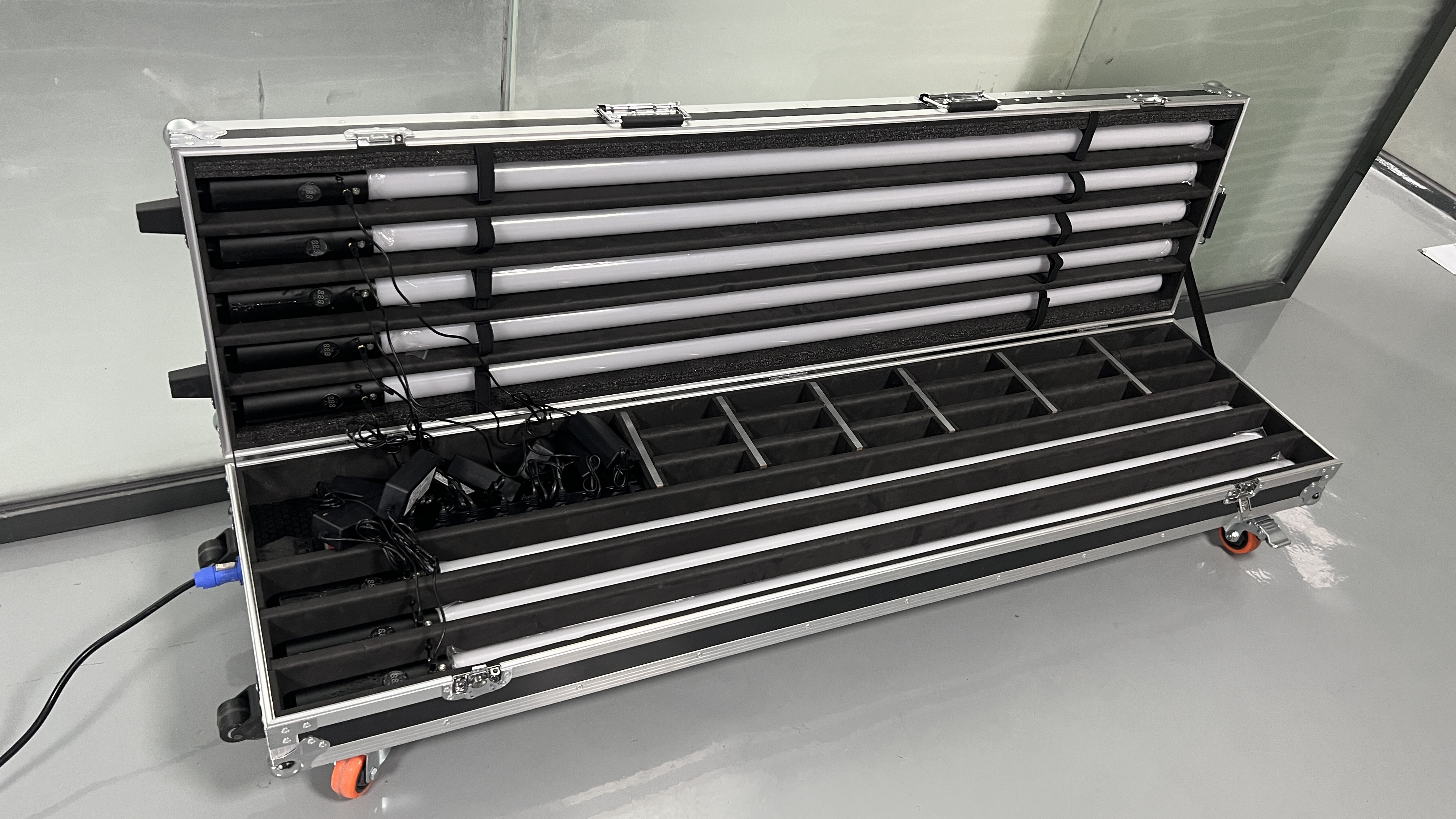

  • Flight Case Size:
    • Size: L175 x W45 x H35 cm
    • Weight: NW 20 kg,GW 45 kg









V2 1.5M Wireless Battery 360 Pixel Tube

  • Built-in Effects: 50 modes
  • Viewing Angle: 360°
  • Diyplay: OLED
  • Touch Button 4keys: Mode/Enter/Up/Down
  • Stroboscopic Rate: 0-30Hz
  • LED Type: SMD5050 5in1
  • Color Range: Full Color RGBWA (RGB+CCT2600–7000K)

LED Specifications

  • LEDs: 96 (192 doubled)
  • Pixels: 32

Control Specifications

  • DMX Channels: 4CH/5CH/6CH/7CH/12CH/40CH/80CH/160CH
  • Control Modes: DMX512/Artnet/sACN/APP/Sounds/Master-slave/IR Control
  • Control APP:Luminair(need buy DMX receiver alone)
  • Wireless Control Signal Transmission Distance: 20~200 meters

Power and Battery Specifications

  • Input: Charger 100~240VAC 50/60Hz (output DC)
  • Power Consumption: 28W
  • Charging Time: 3~5 hours
  • Battery Working Time:
    • Full RGBWA: 2 hours
    • Color Changing: 6-12 hours

Physical Specifications

  • Material: Aluminum + Plastic
  • PC Cover Color: Milky
  • Diameter: 50mm
  • Lengths: 1435mm
  • Protection Level: IP66
  • Battery Brand: Non
  • Battery Mode: 21700 9000mAh 12V
  • Battry Certificate: MSDS UN38.3 CE RoHS
  • LifetimeCharging and discharging can reach more than 500 times

Included Accessories

  • 8x Wireless Battery 360 Pixel Tubes
  • 8x Chargers (EU/US/CN/UK/AU plug options available)
  • 8x Adjustable Tripod Floor Stands
  • 8x 24keys IR Controller
  • 1x WiFi DMX Transmitter
  • Flight Case Size:
    • Size: L155 x W45 x H35 cm
    • Weight: NW 18 kg,GW 43 kg







Tripod Floor Stand

Hook Connector





DMX Transmitter



DMX Receiver(it's working receive Luminair signal to DMX Transmitter)











Charger



Feature V1 Version V2 Version
Height Design 1.7 meters — more ergonomic for comfortable viewing and interaction Usually taller or customizable, but less ergonomic for close interaction
Control Method Artnet control via WiFi router Primarily controlled via DMX lighting console
Networking Capacity Supports up to 253 tubes via WiFi router, quick and scalable setup Each DMX wireless transmitter controls up to 3 tubes, requiring more hardware
Pixel-Level Control Easily supports individual pixel control via Artnet Requires many DMX transmitters for pixel-level control, higher complexity
Wireless Signal Range Moderate range, suitable for indoor or short-range setups Longer wireless range, stronger anti-interference capability
Battery Life Longer battery life — ideal for extended wireless use Shorter battery life — requires frequent charging or stronger power supply
