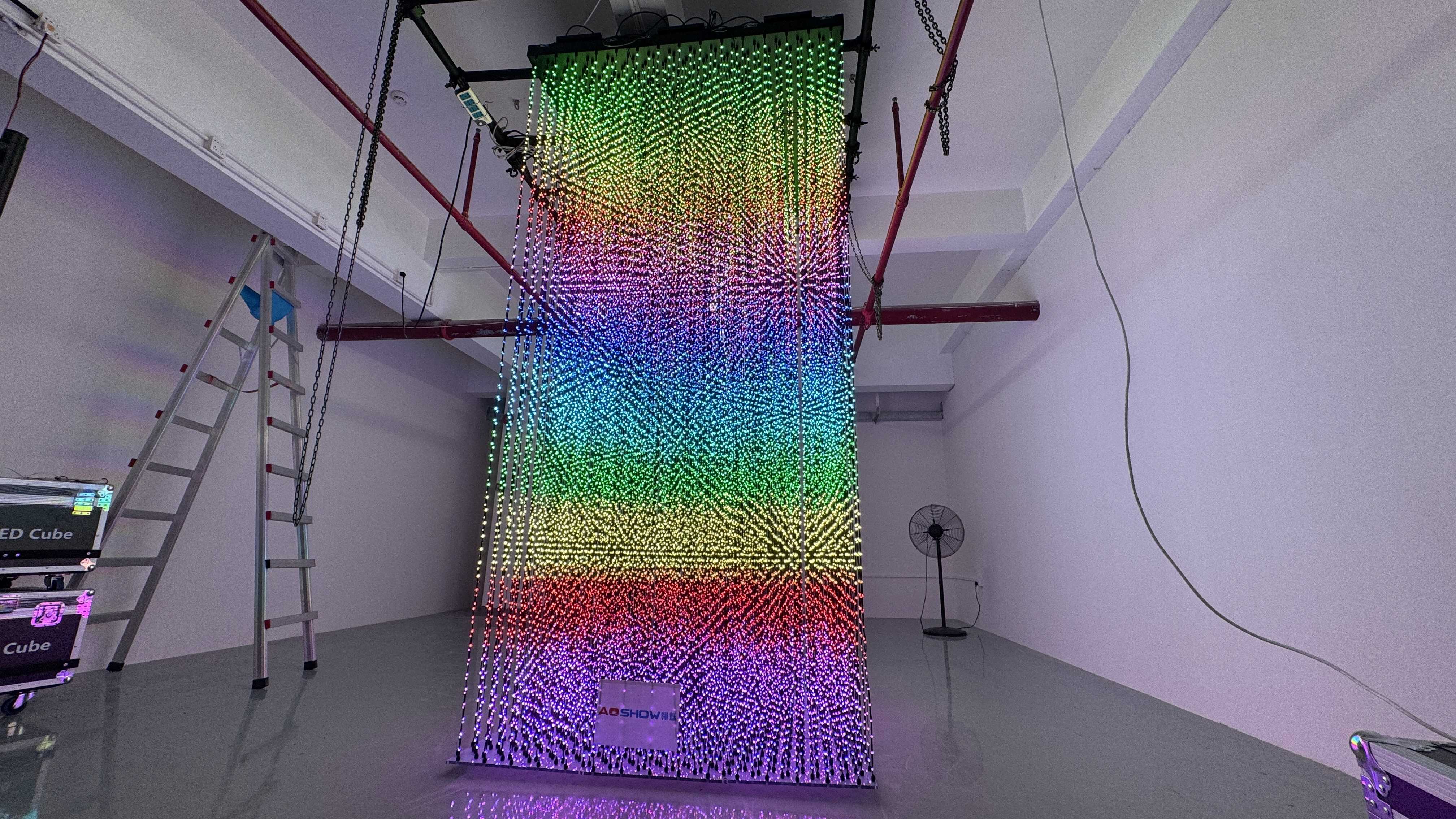

AS_3D Volumetric LED Display
Key Features:
Pixel String, Power Supply, and Artnet Controller Integration:
All essential components (pixel strings, power supply, and Artnet controller) are housed together in one box.
This design allows for quick and easy installation, minimizing setup time and complexity.

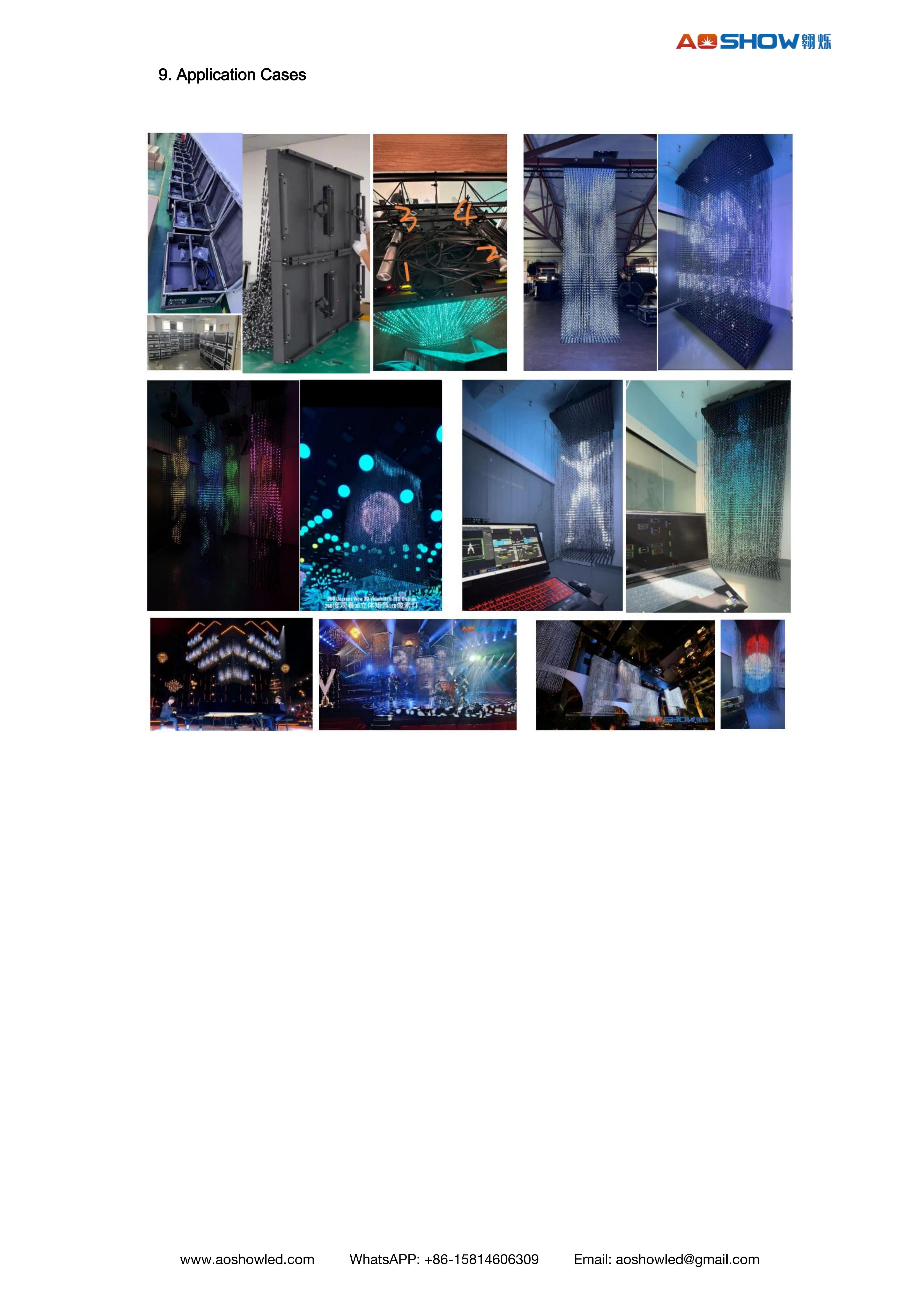

Applications:

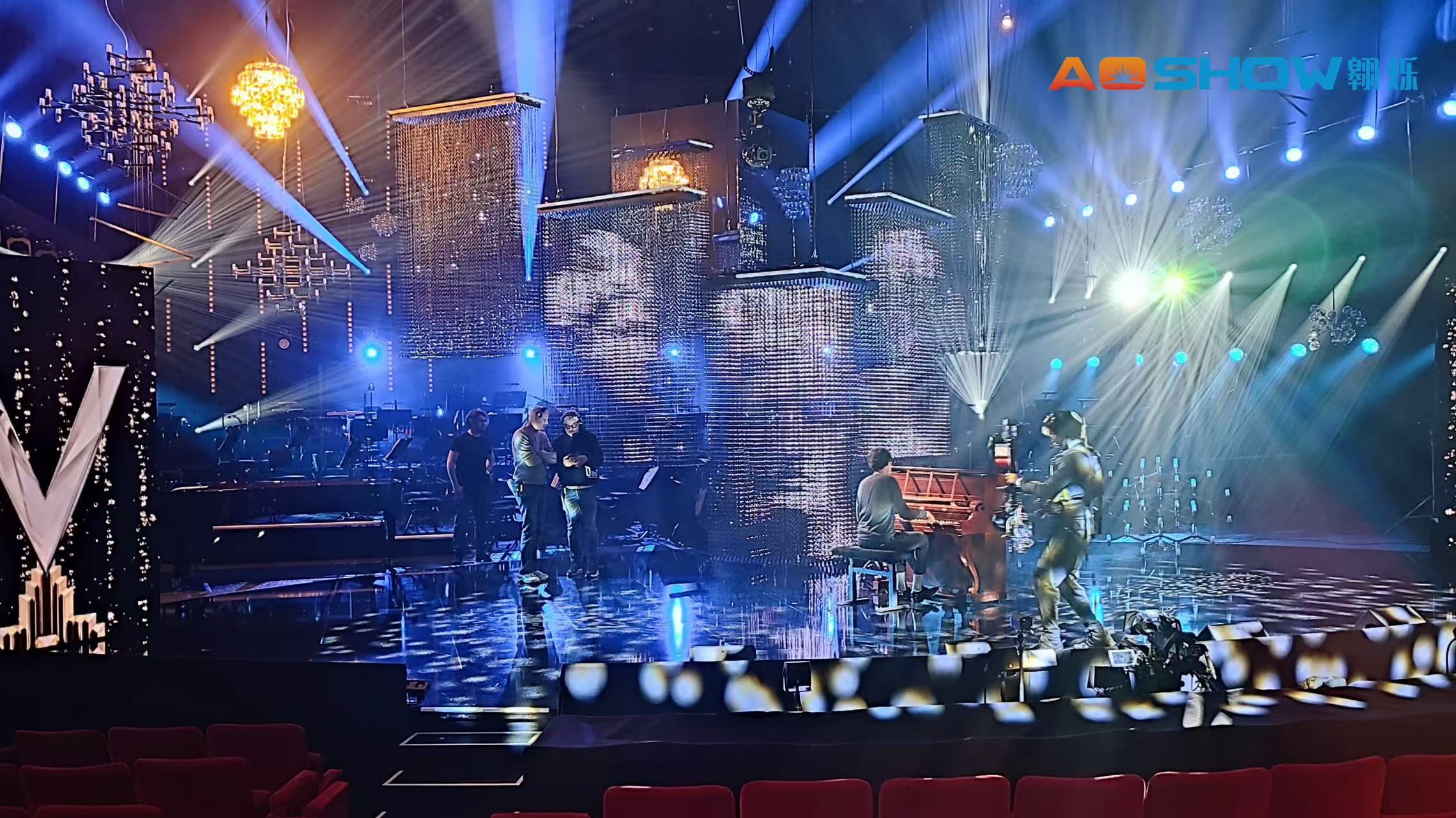

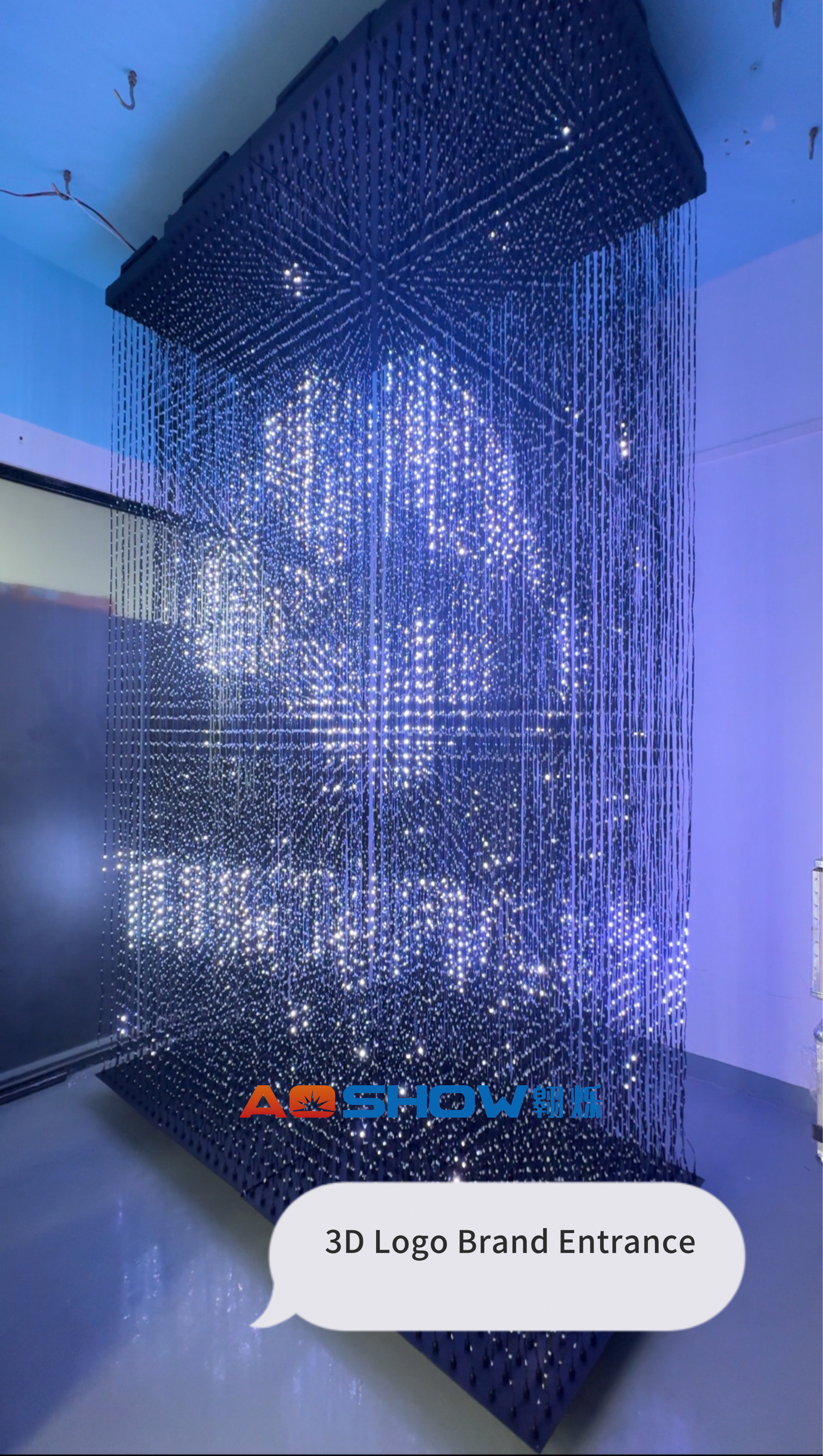

Stage Event Lighting: Ideal for dynamic and visually captivating lighting effects in concerts, theater productions, and live events.
Rental & Retail: Suitabl
3D Volumetric LED Display

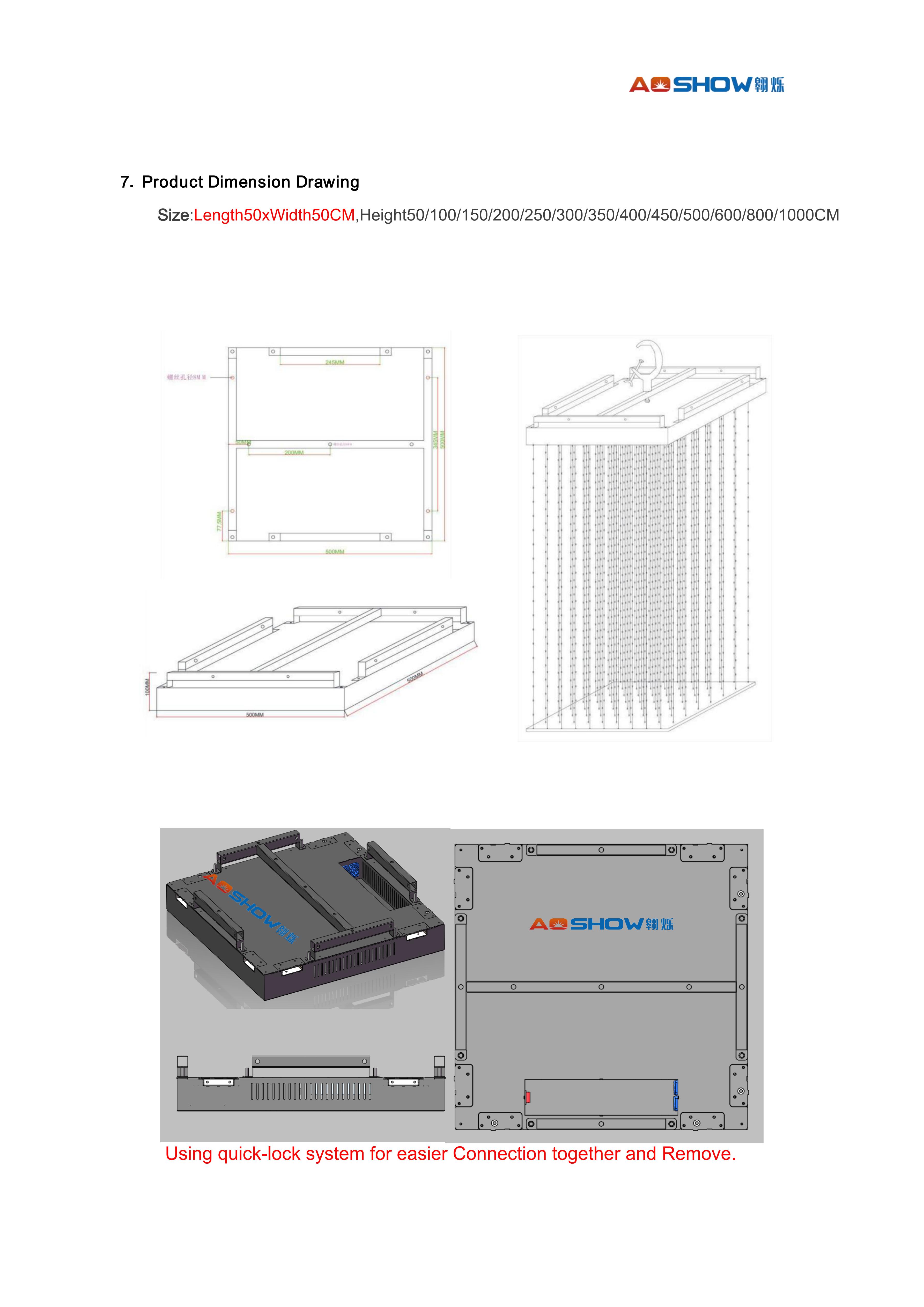

Size: Length50 x Width50CM,
Height 50/100/150/200/250/300/350/400CM(Add 15CM Box and Clamp Size)

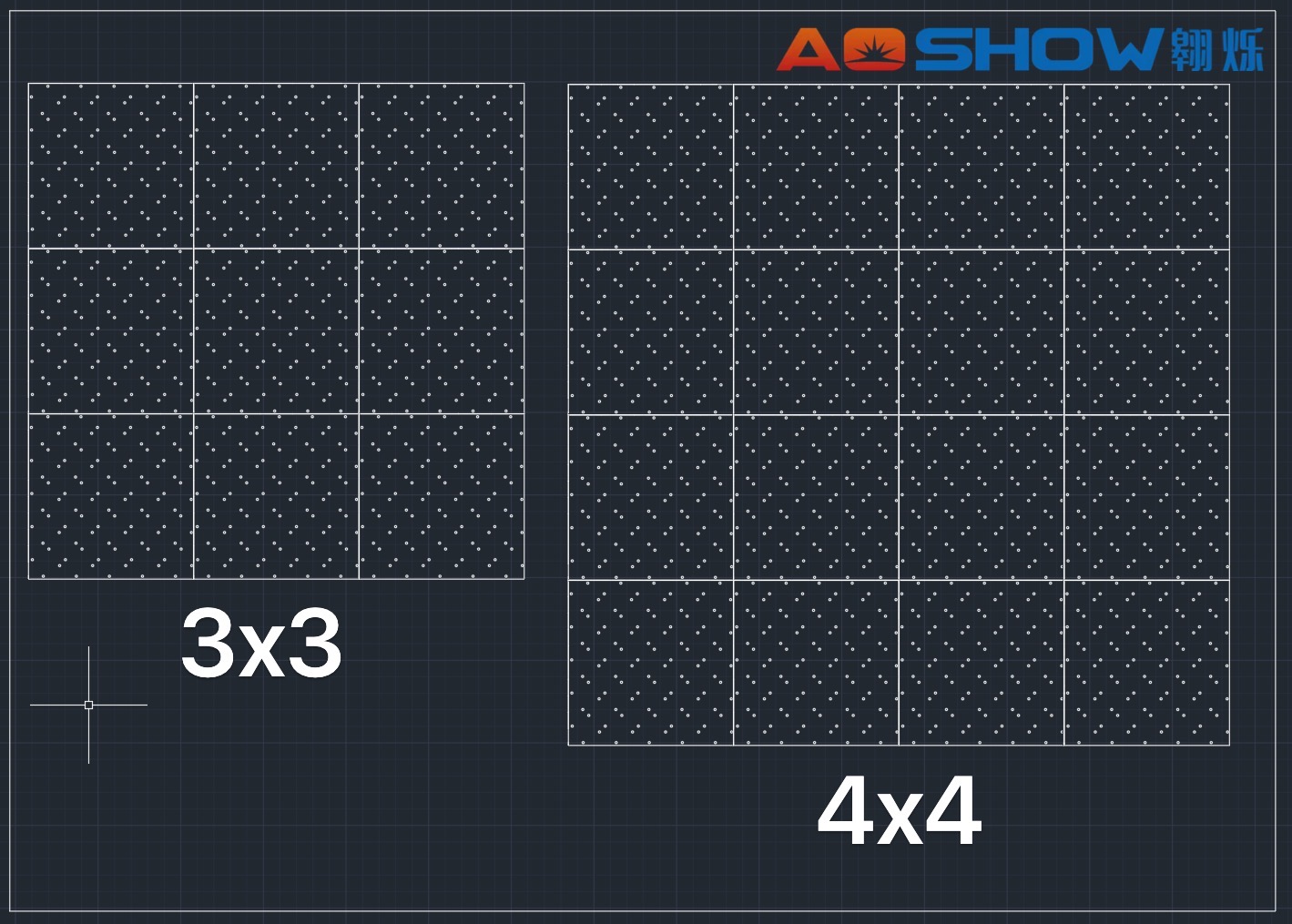

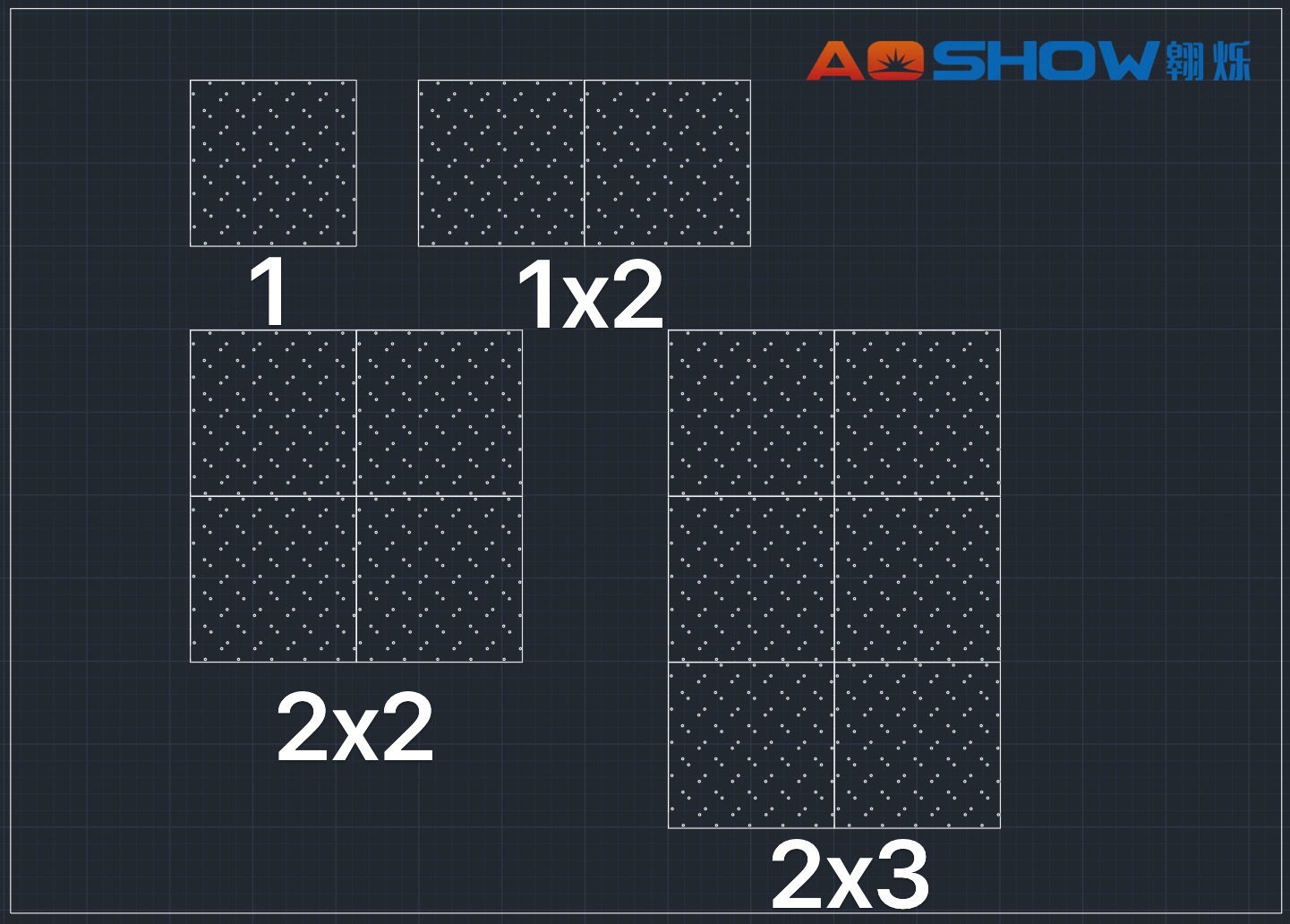

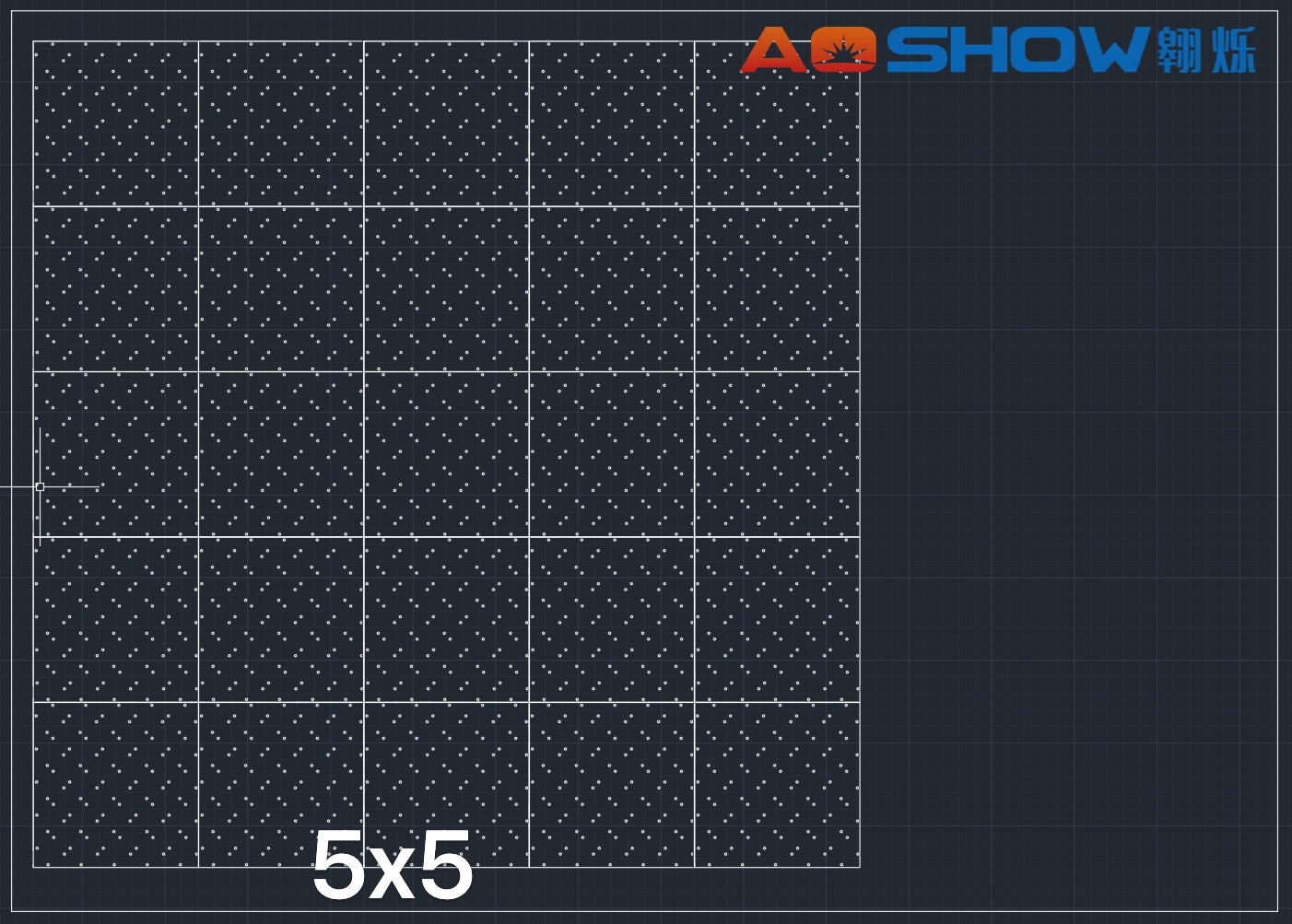

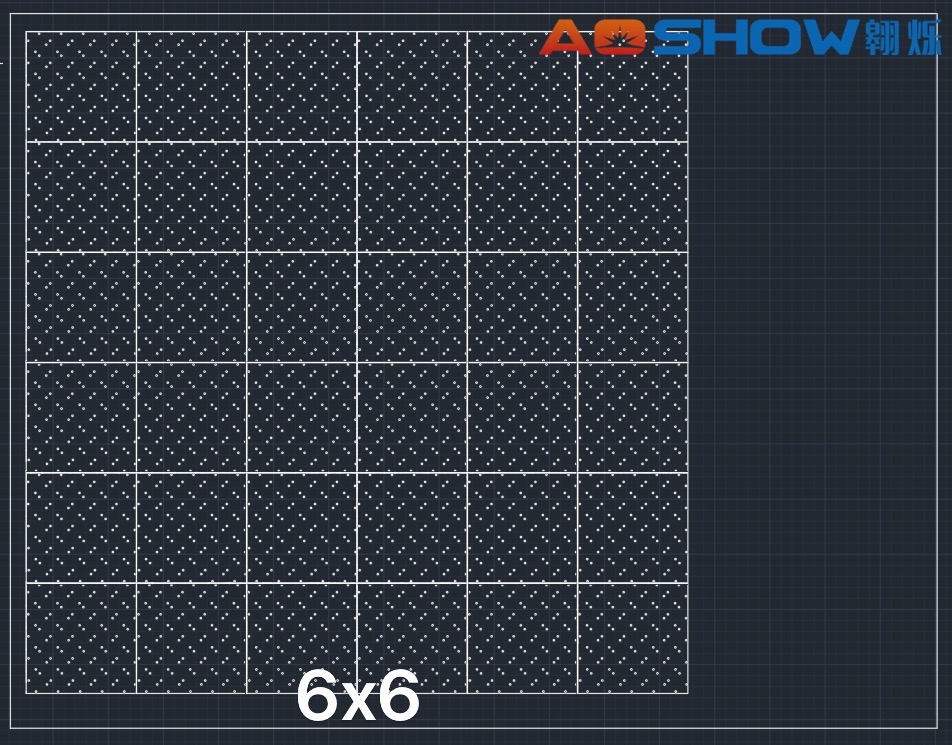

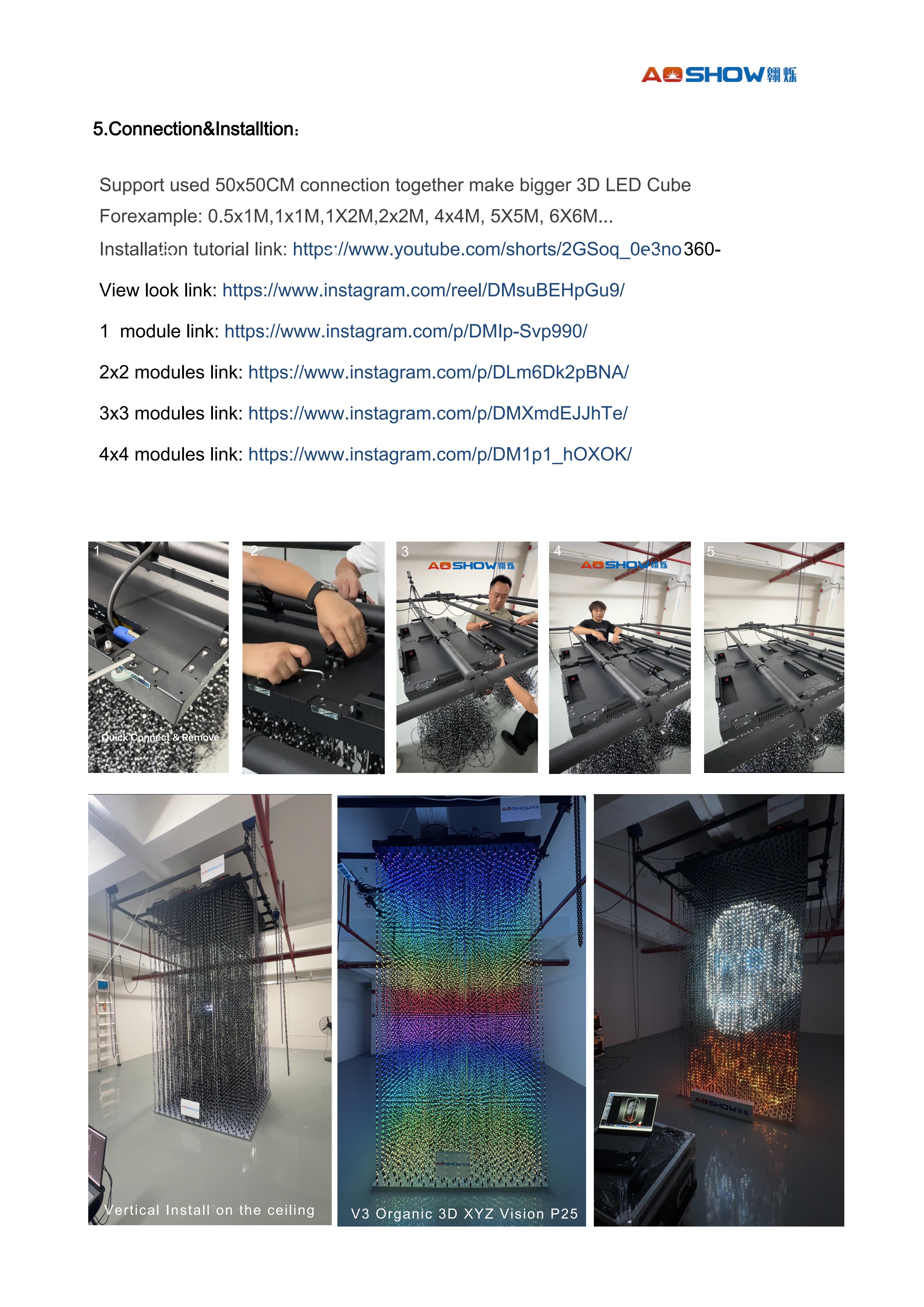

Support used 50 x 50CM connection together make bigger 3D Cube, For example: 0.5x1M, 1x1M, 1X2M, 2x2M,4x4M...
Version：

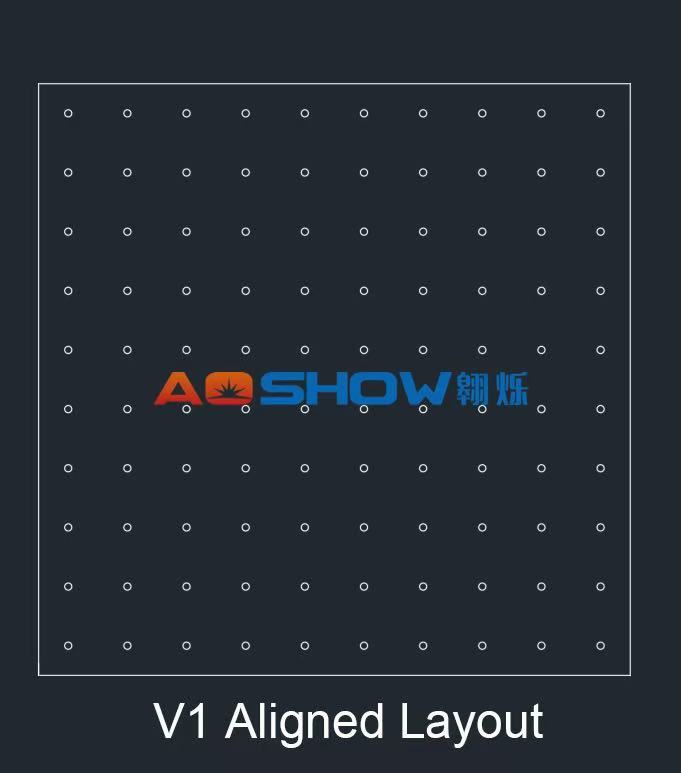

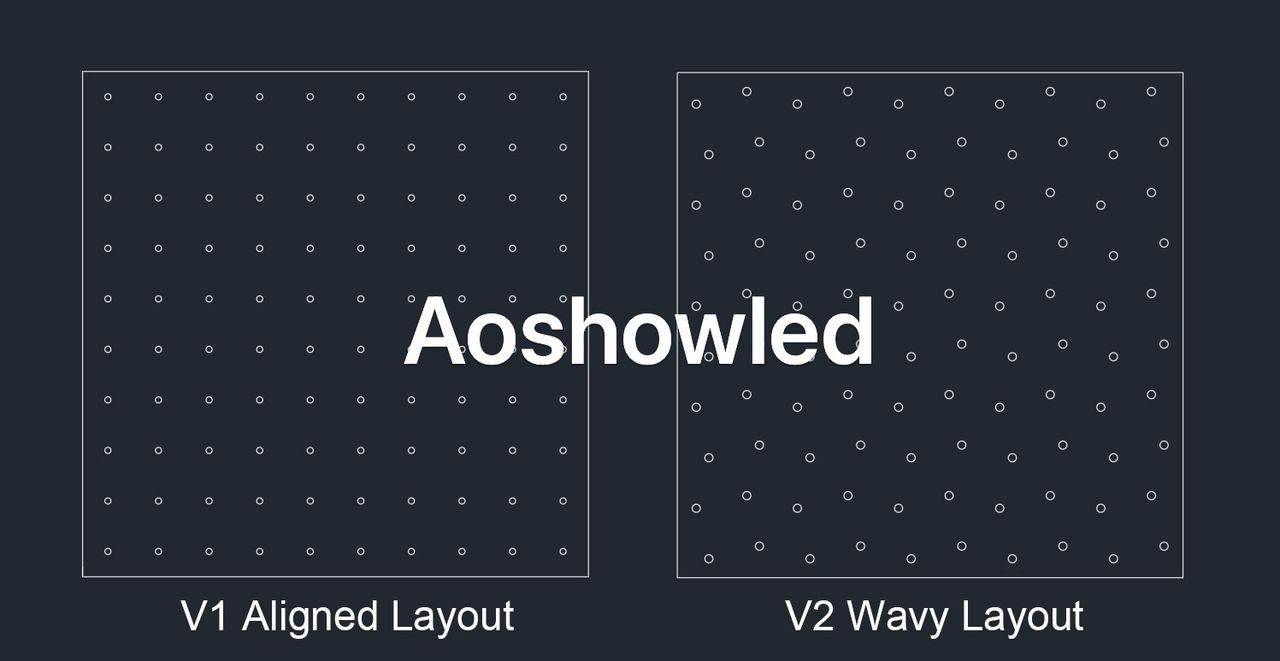

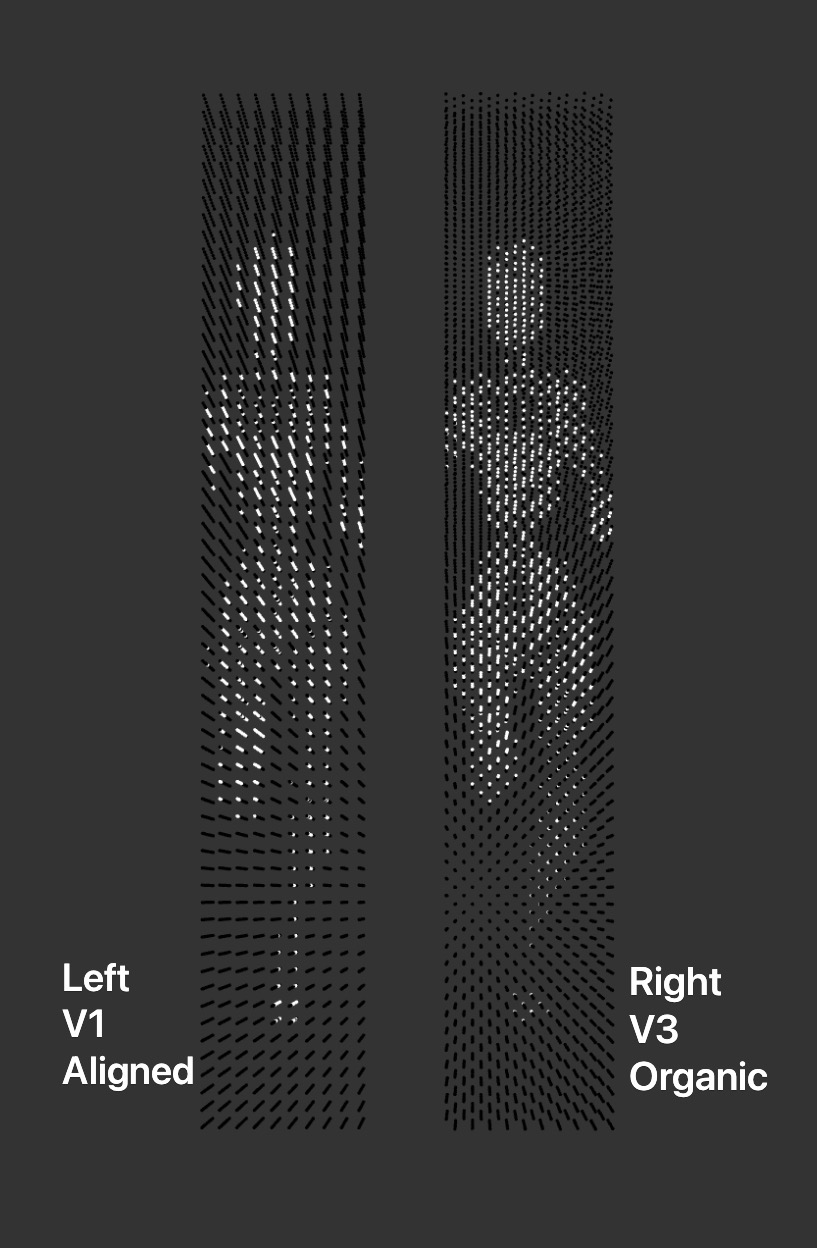

V1 Aligned Layout ,XYZ Pixel to Pixel Center Size= 5CM
(X Y Z ，Each layer or row of pixel is typically placed directly in line with others)

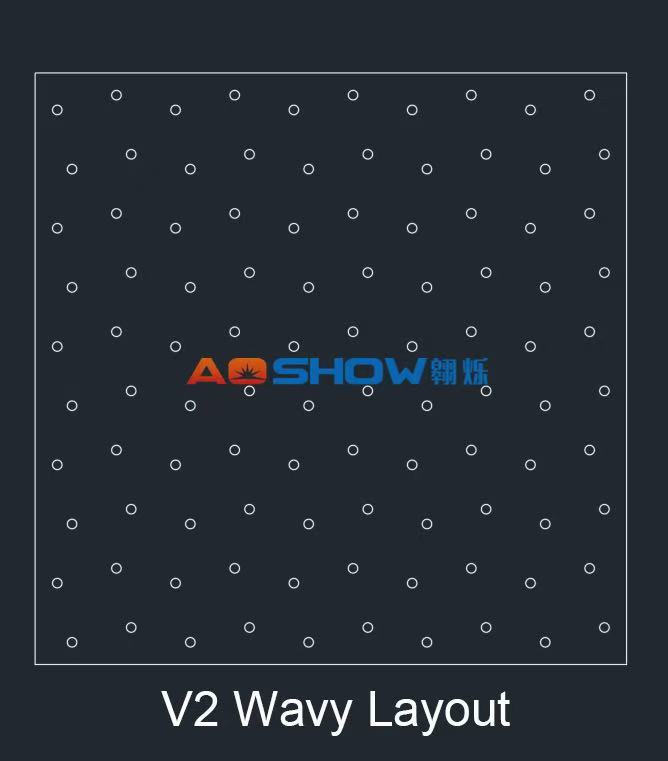

V2 Wavy Layout ,XYZ Pixel to Pixel Size= 5CM ,Slightly move the X and Z axis,Y keep in same
higher resolution (using the same number of LEDs )

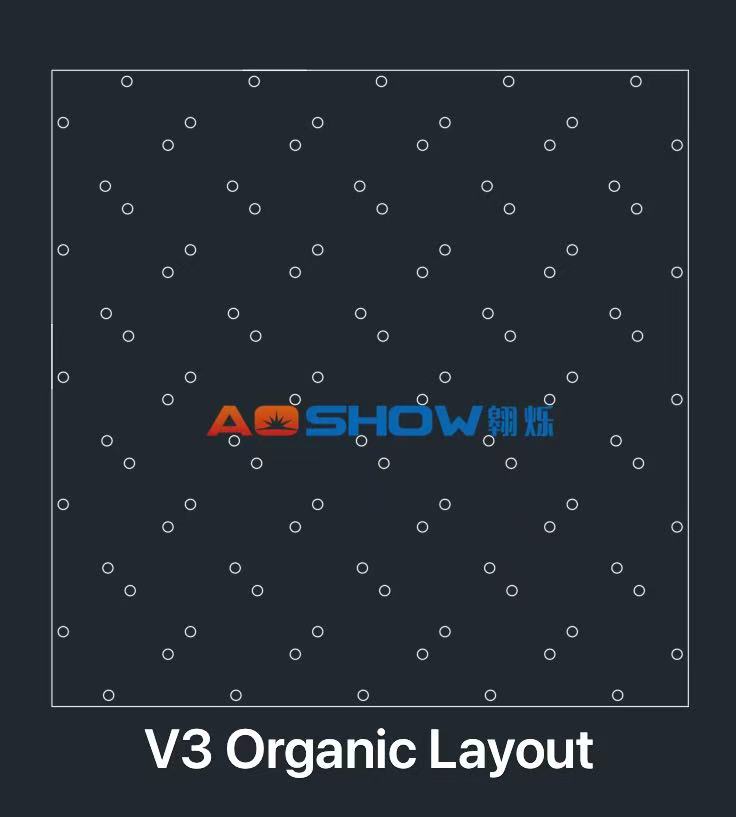

V3 organic Layout , XYZ Pixel to Pixel Size=2.5+5CM,
mush higher resolution (using the same number of LEDs)

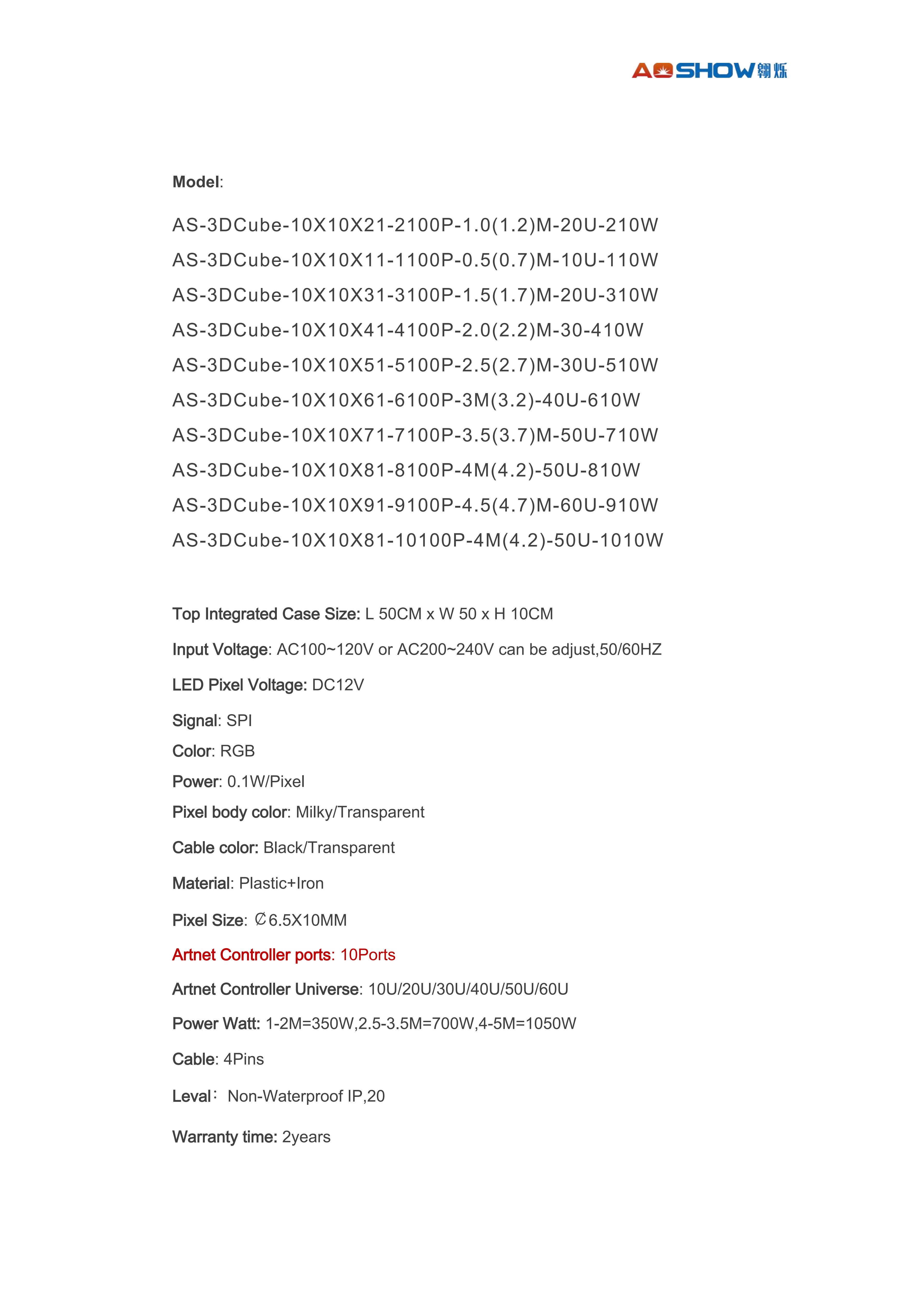

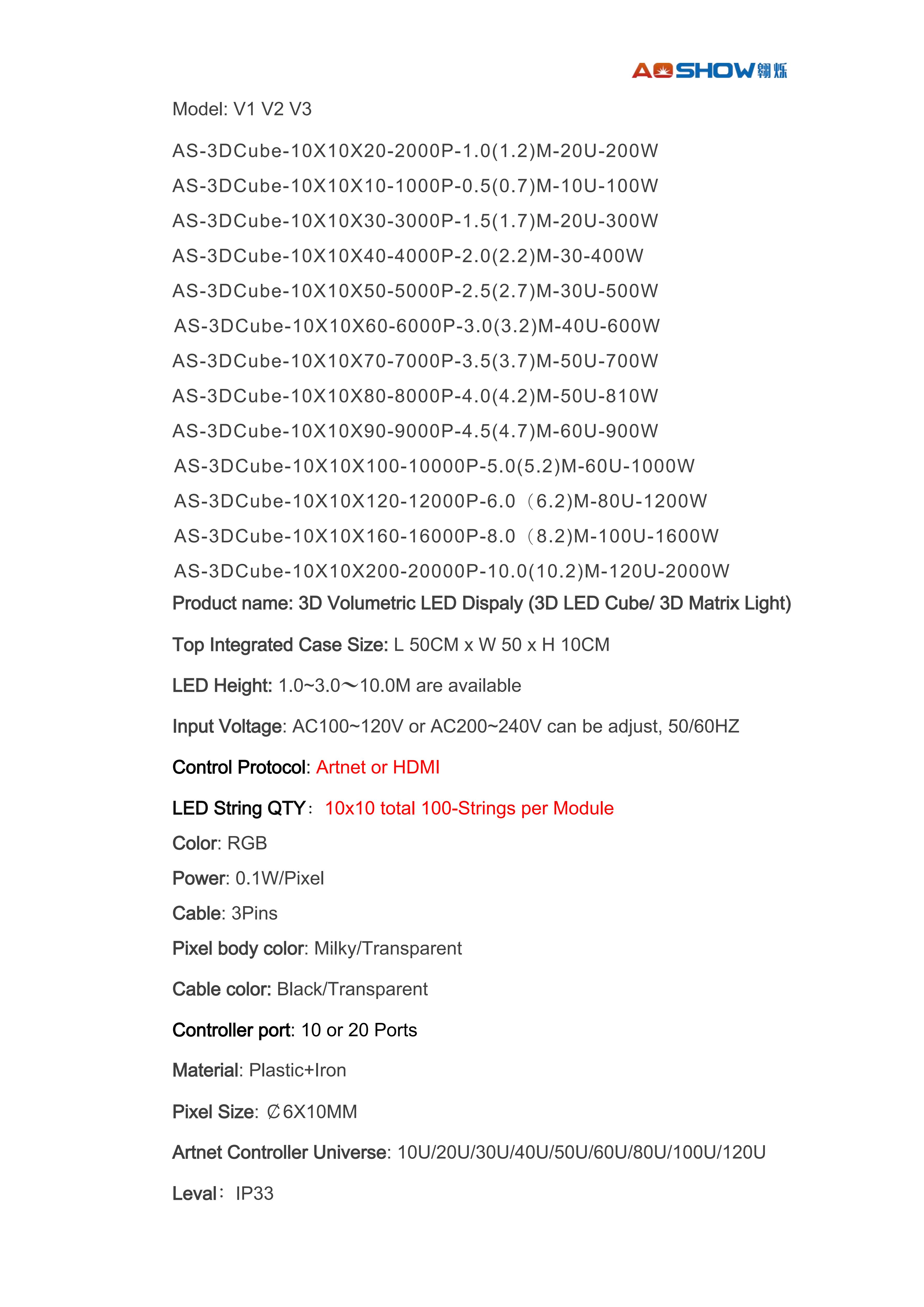

Model V1 and V2 :
AS-3DCube-10X10X21-2100pixels-1.0M 20Universes
AS-3DCube-10X10X11-1100pixels-0.5M 10Universes
AS-3DCube-10X10X31-3100pixels-1.5M 20Universes
AS-3DCube-10X10X41-4100pixels-2.0M 30Universes
AS-3DCube-10X10X51-5100pixels-2.5M 30Universes
AS-3DCube-10X10X61-6100pixels-3M 40Universes
AS-3DCube-10X10X71-7100pixels-3.5M 50Universes
AS-3DCube-10X10X81-8100pixels-4M 50Universes
V3
AS-3DCube-10X10X21-2000pixels-1.0M 20Universes
AS-3DCube-10X10X11-1000pixels-0.5M 10Universes
AS-3DCube-10X10X31-3000pixels-1.5M 20Universes
AS-3DCube-10X10X41-4000pixels-2.0M 30Universes
AS-3DCube-10X10X51-5000pixels-2.5M 30Universes
AS-3DCube-10X10X61-6000pixels-3M 40Universes
AS-3DCube-10X10X71-7000pixels-3.5M 50Universes
AS-3DCube-10X10X81-8000pixels-4M 50Universes
Input Voltage: AC100~120V or AC200~240V can be adjust ,50/60HZ
LED Pixel Voltage：DC12V
Signal: SPI
Color: RGB
Power: 0.1W/Pixel
Pixel color: Milky/Transparent
Cable color：Black/Transparent
Material: Plastic+Copper
Ball size:￠6.5X10MM
Cable: 4Pins
Non-Waterproof IP20
Warranty 2years
Cap Box Built-in: An Artnet Controller 10ports SPI 10/20/30/40/50Universes can be setup and Power Supply 350W/700W/1050W AC100~240V 50/60HZ

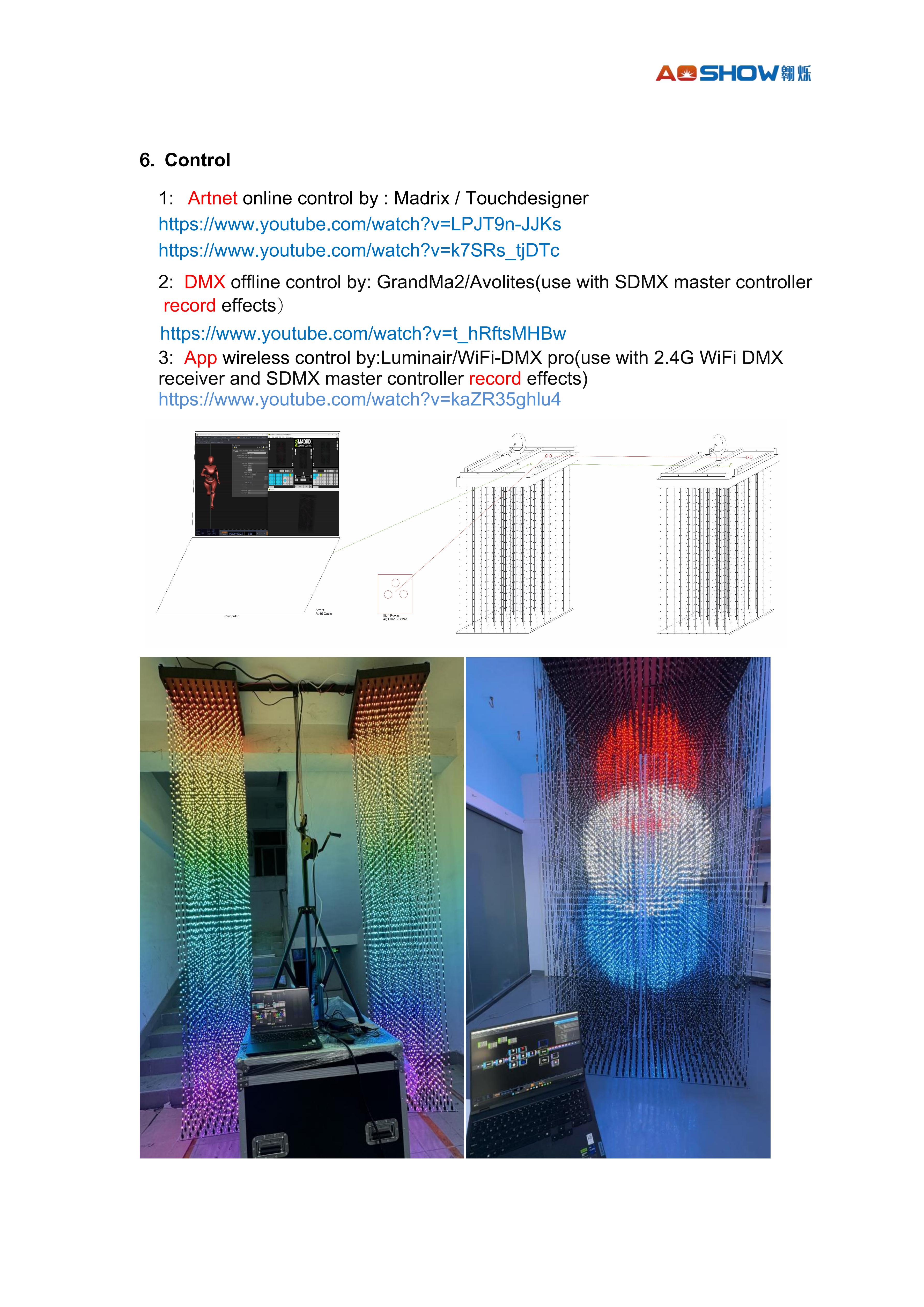

Control method 1: Artnet, Software Madrix or Touchdesigner 3D XYZ Pixel Mapping online Control
Control method 2: DMX , SDMX Master Controller record Madrix and Touchdesigner effects on SD card offline Control ，SDMX also support DMX input control MA/Avolites or APP WiFi dmx

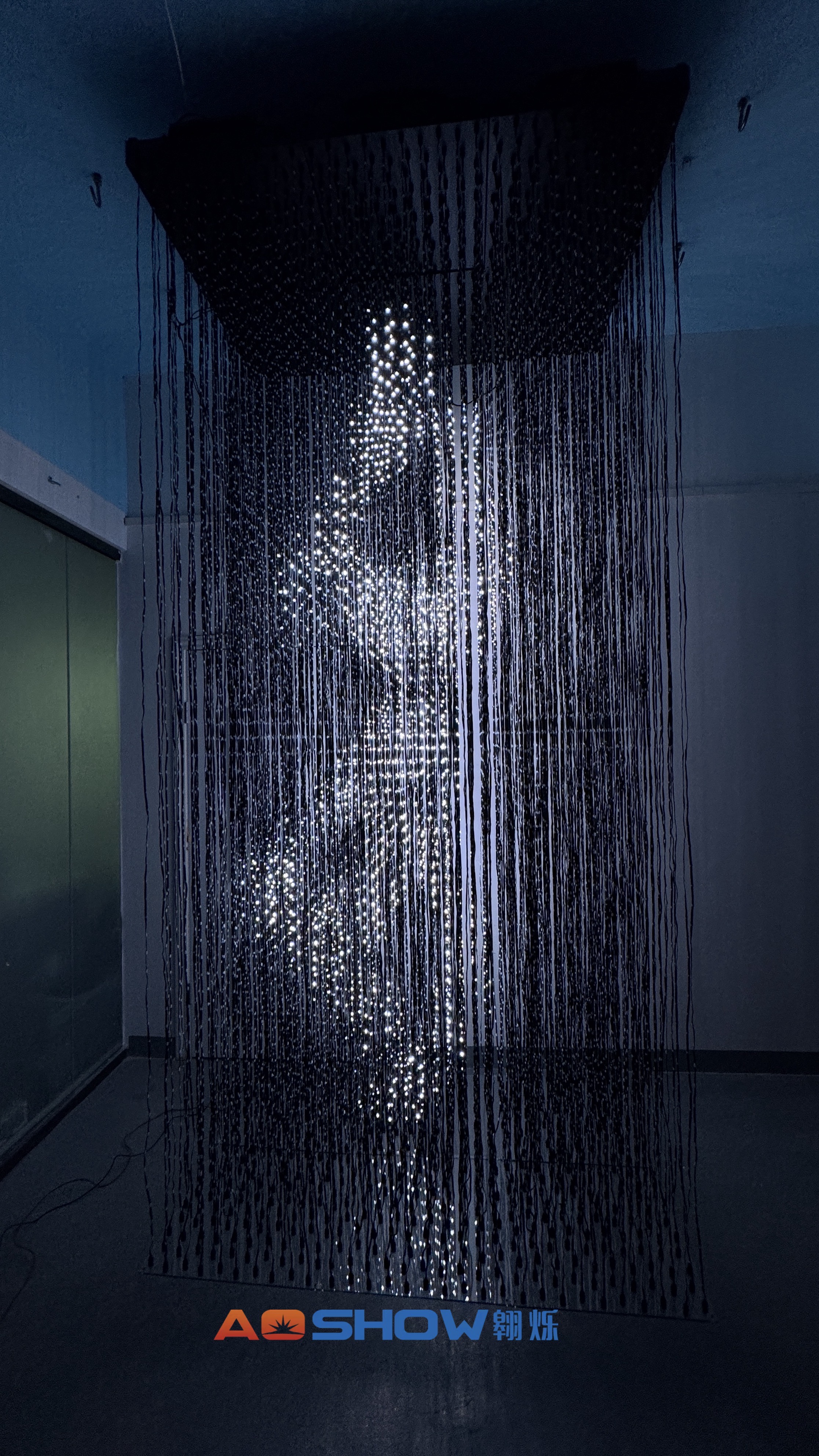

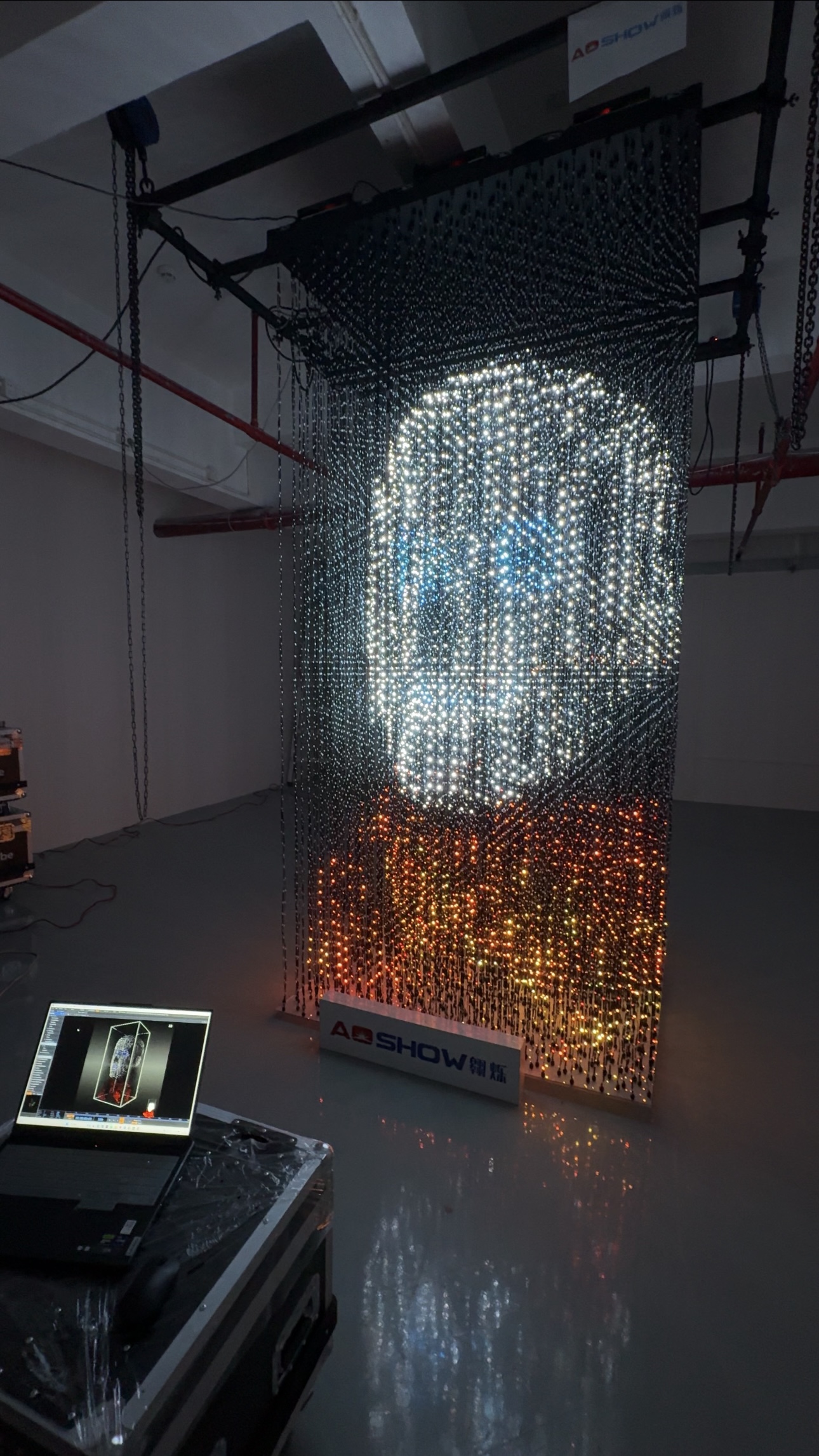

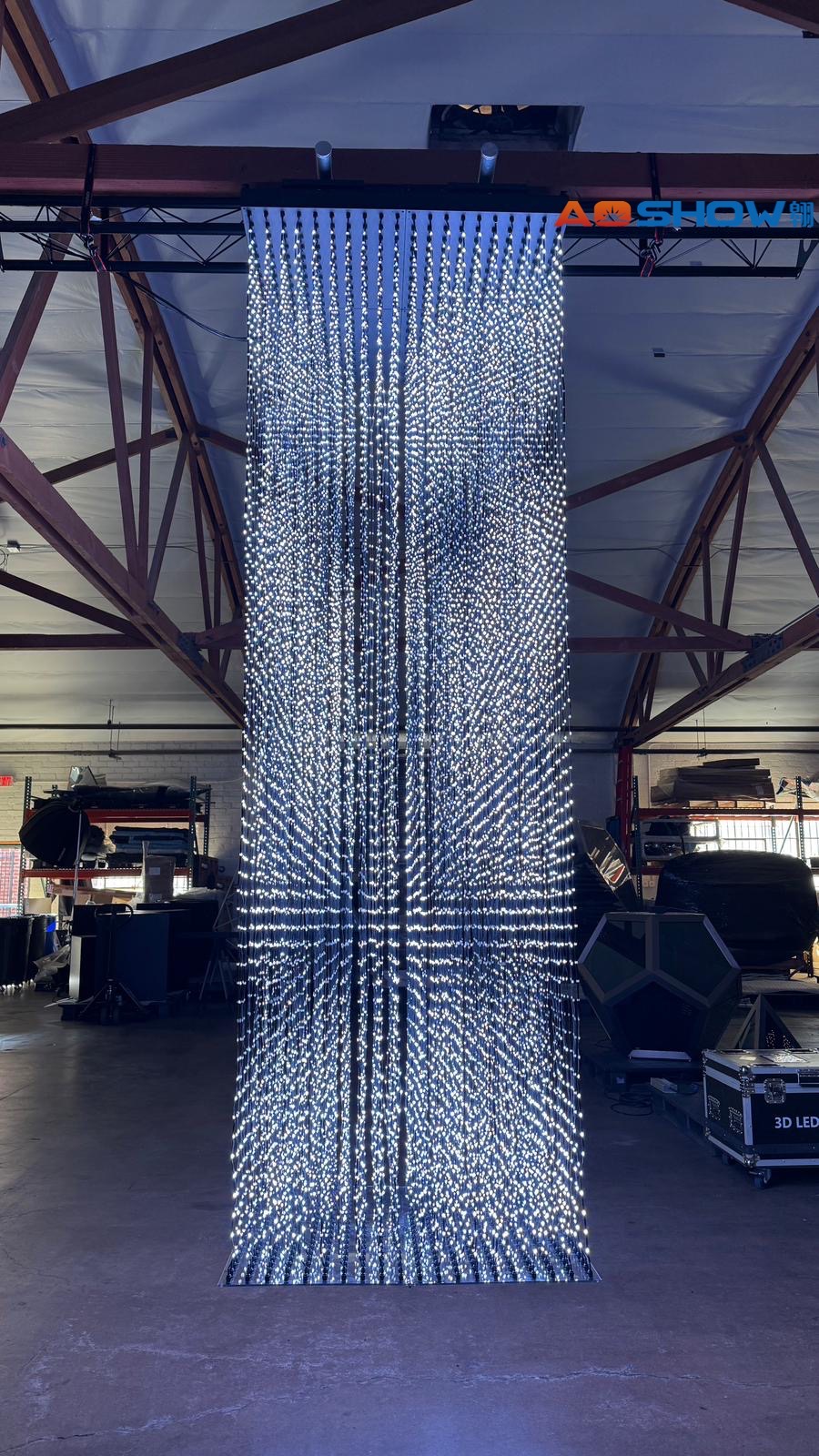

Standalone installation,Even with a 5 cm Pixel to P pitch, Single 3d volumetricled display 50x50cm can still display animations.

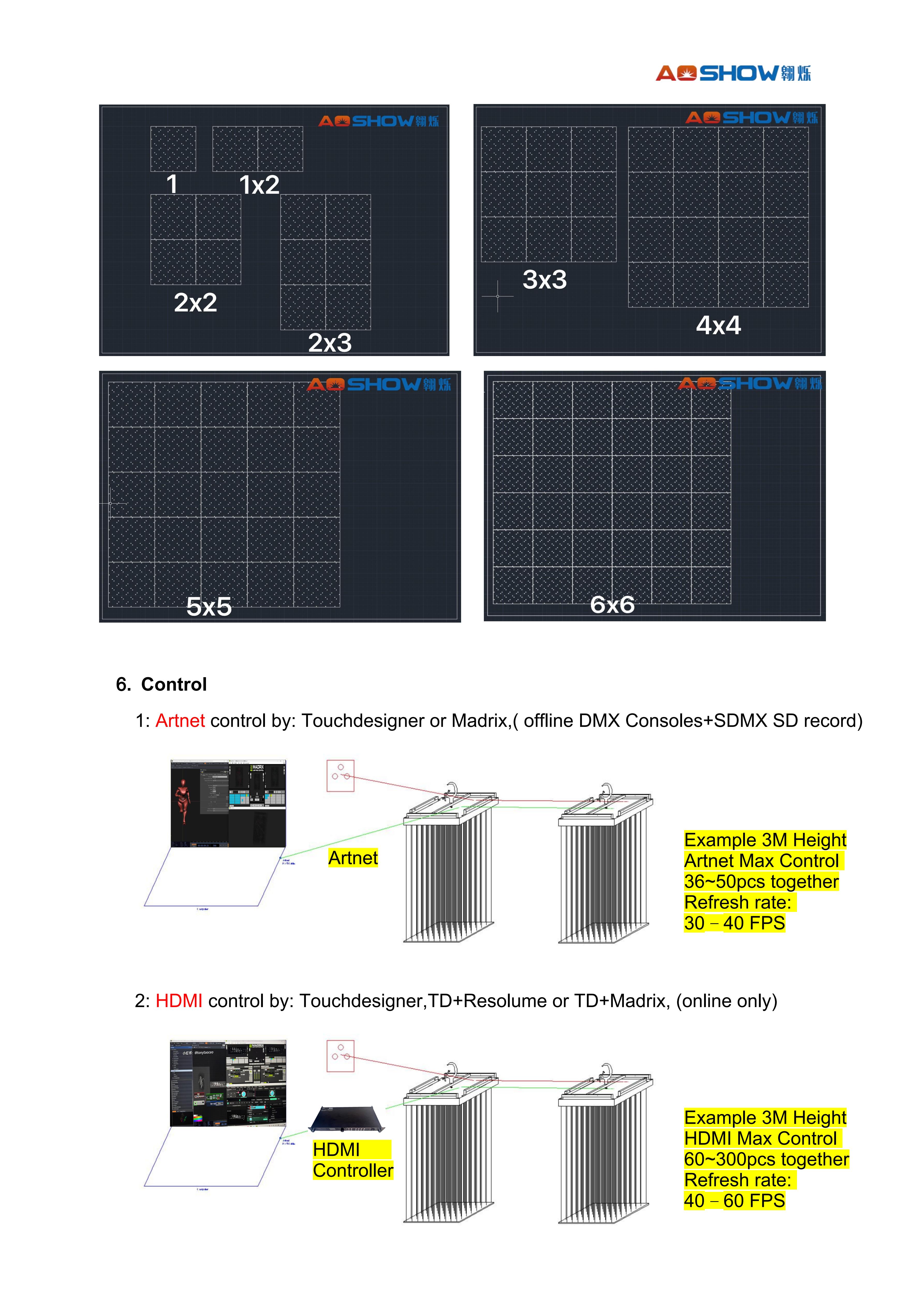

Multiple 3D volumetric LED displays can be quickly connection together for modular combination, make of larger units.
Why choose AoshowLED?
We not only independently develop and manufacture 3D volumetric LED displays, We also provide highly professional lighting effect programming.

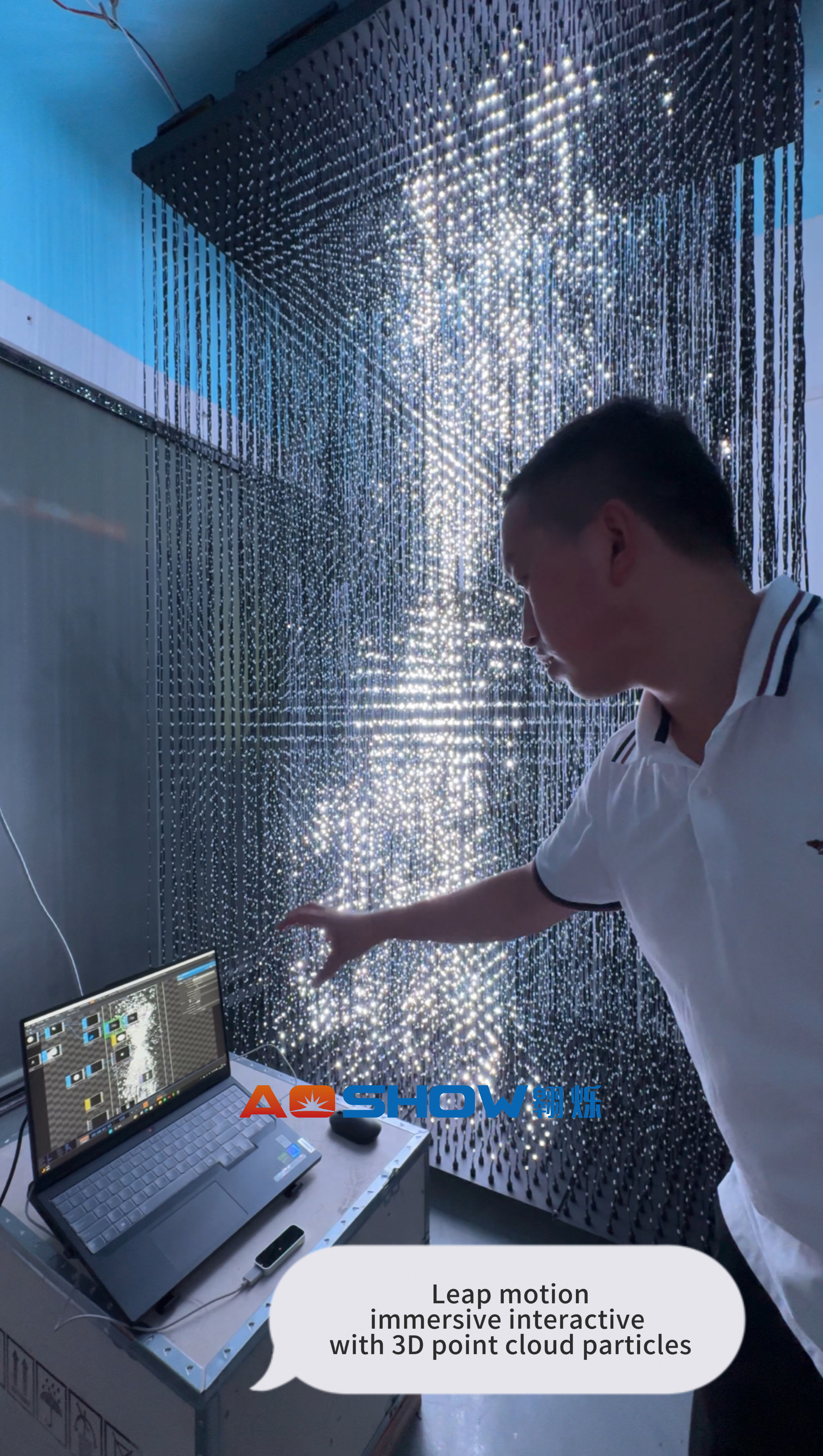

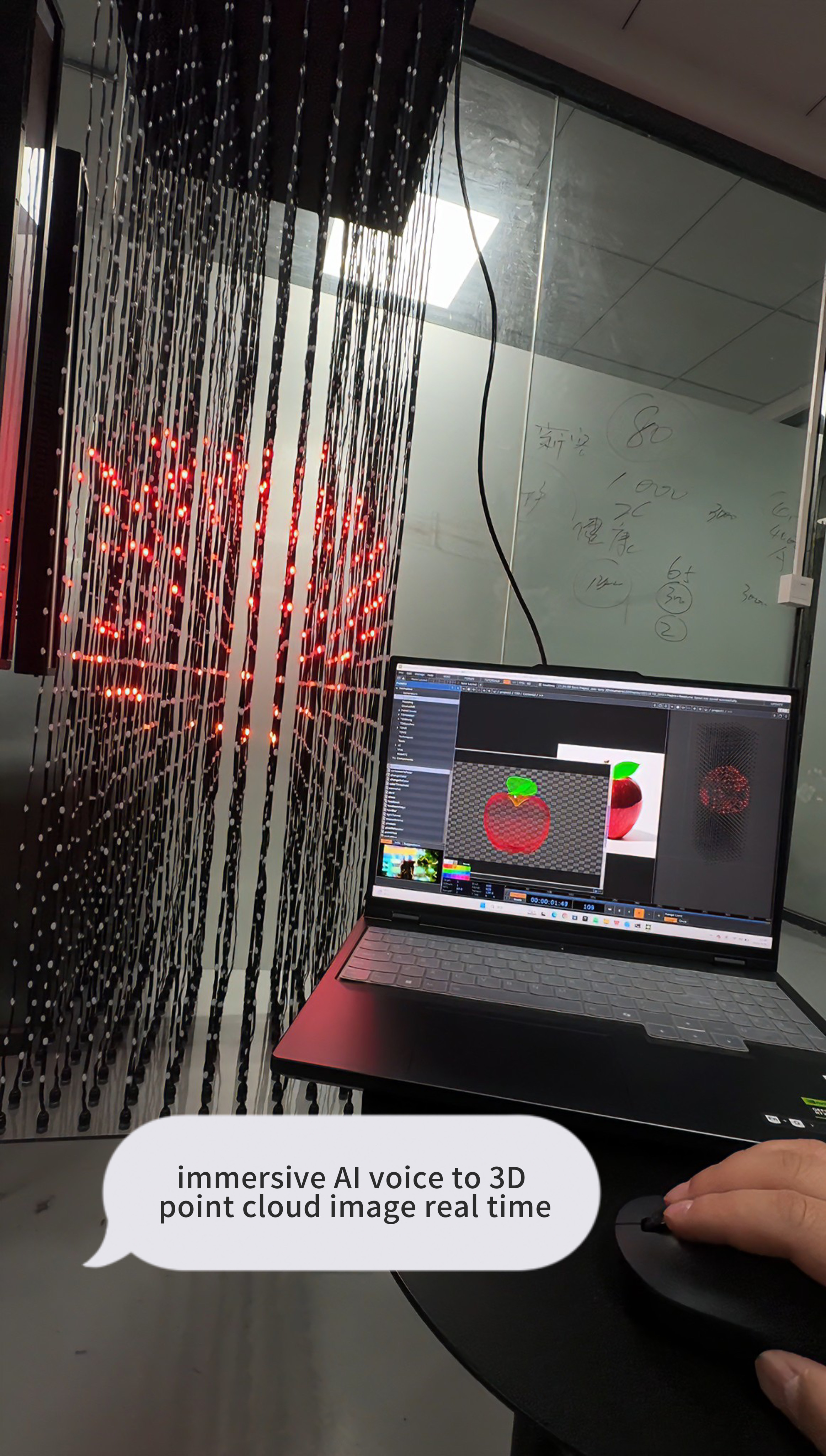

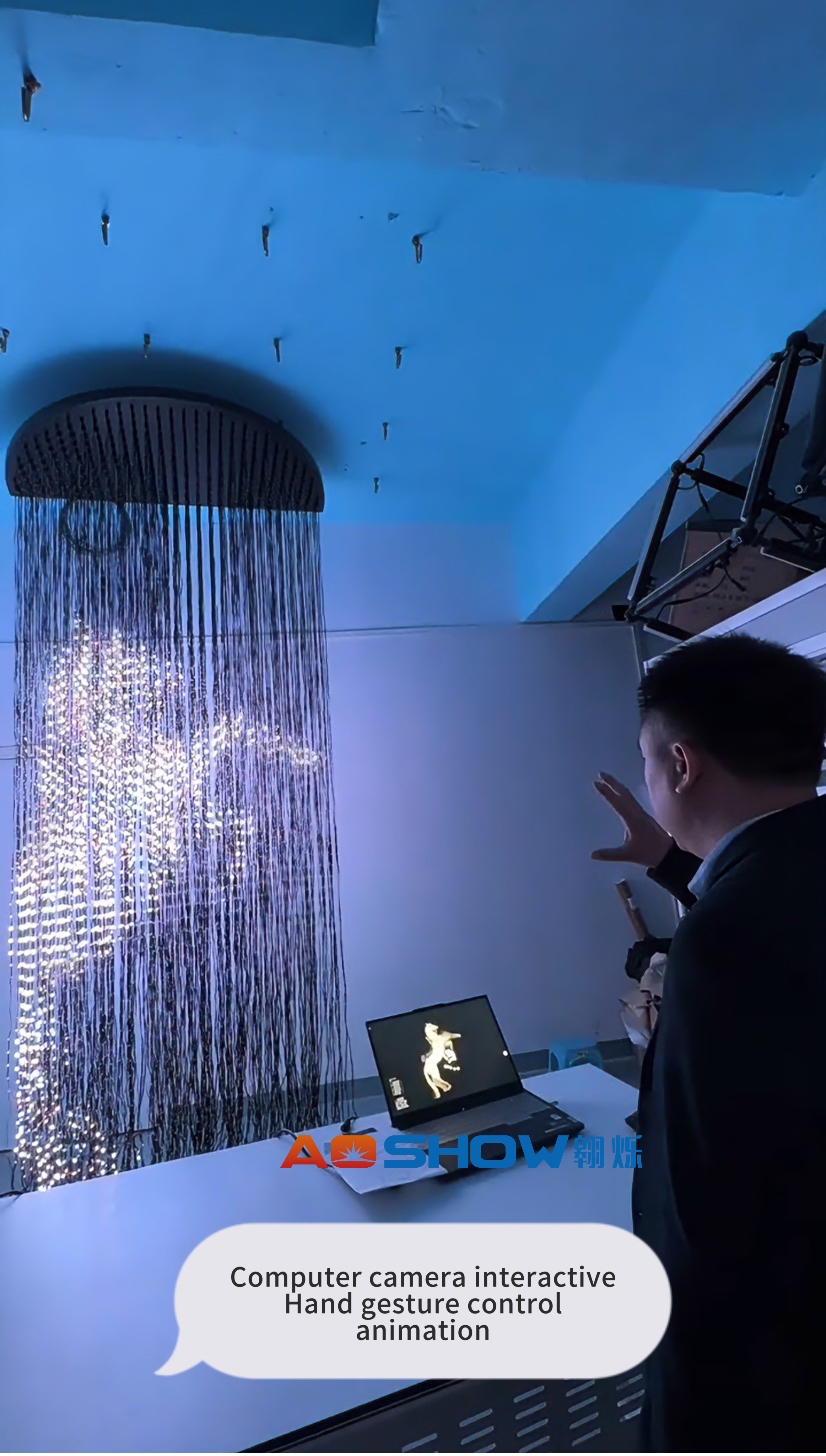

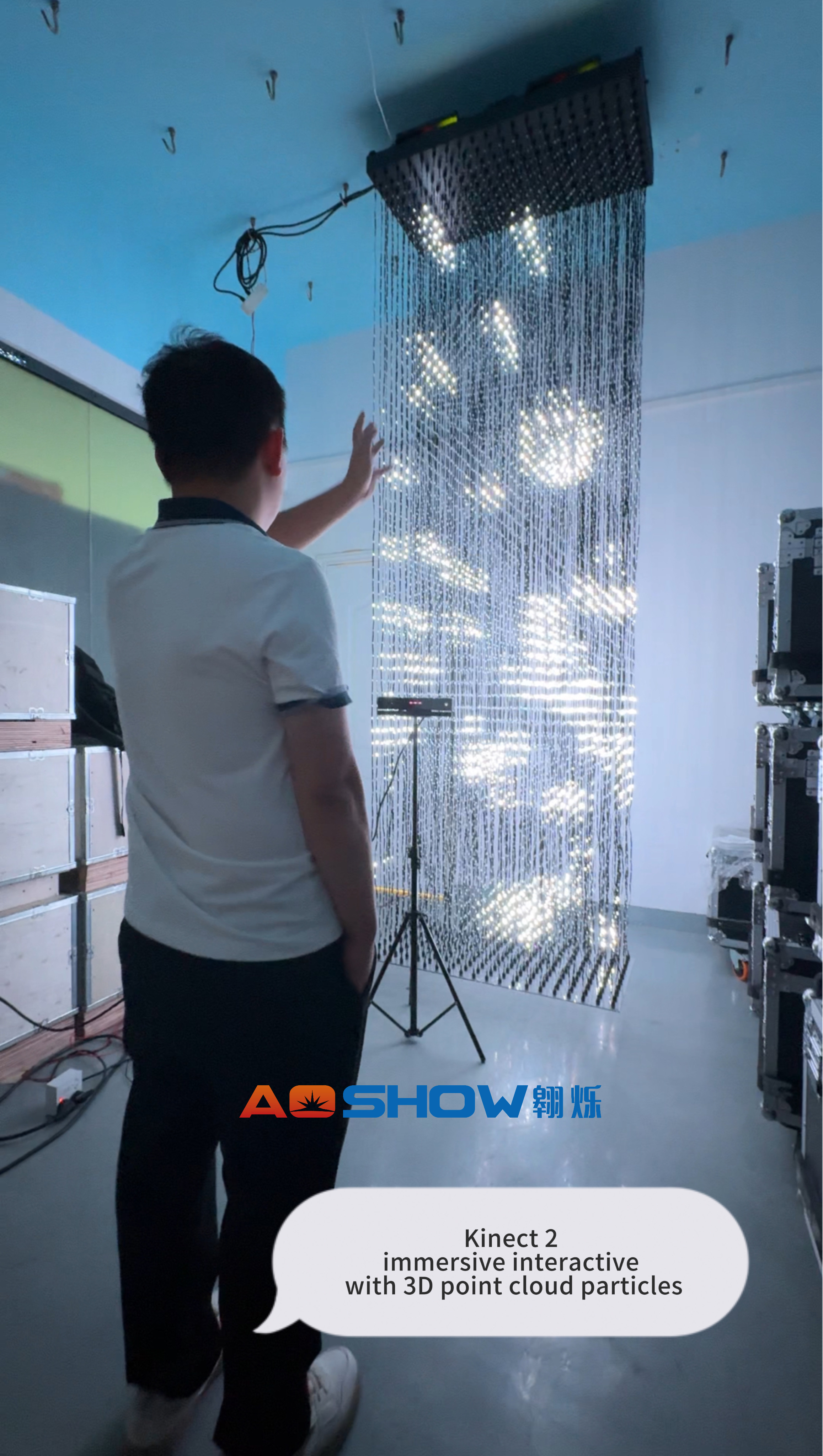

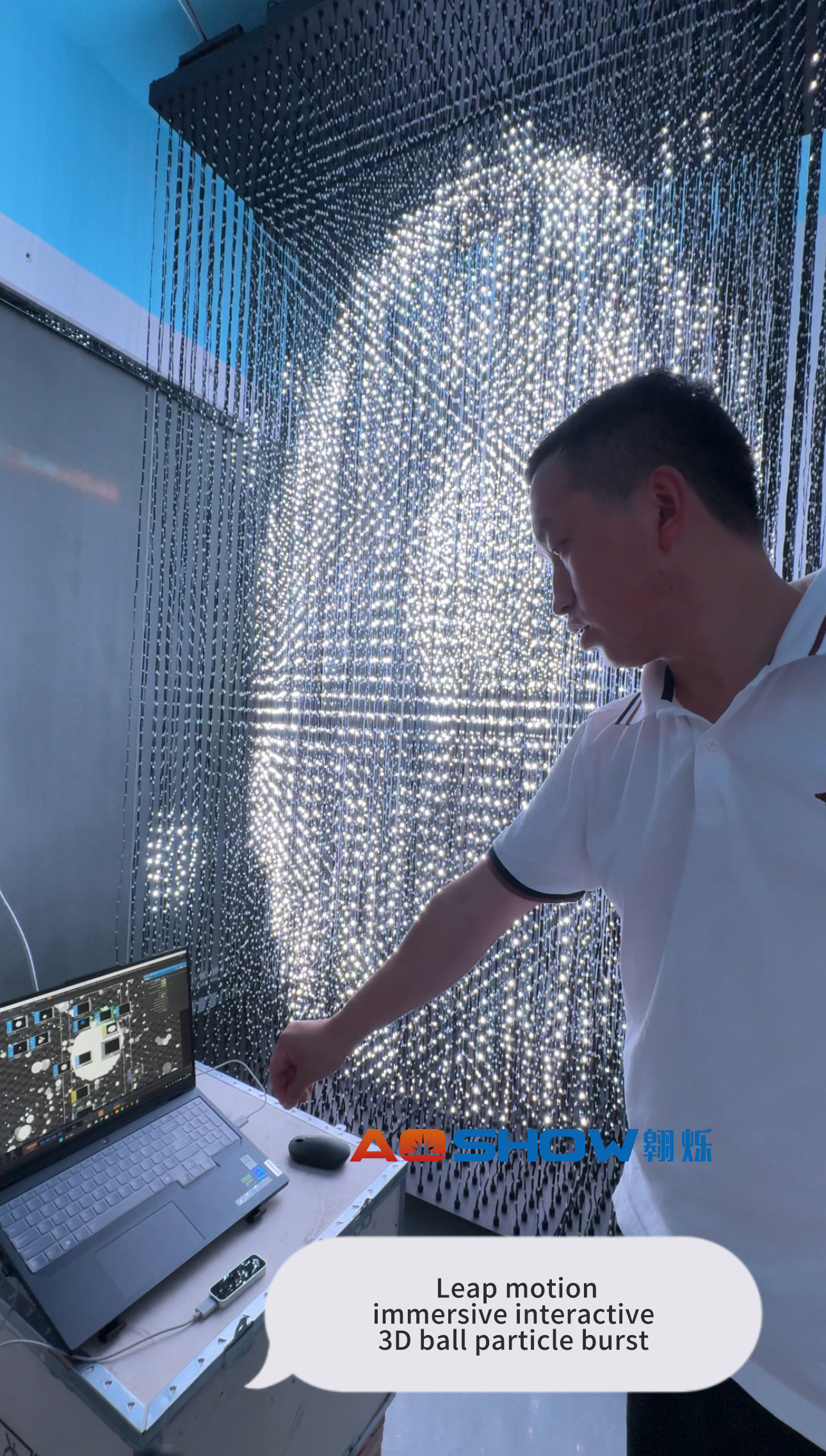

Our expertise includes TouchDesigner, Madrix, Kinect 2 interaction, Leap Motion interaction, audio interaction, camera-based interaction, radar interaction, and even advanced AI interaction.
Connection Instructions:
