AS_Pixelbar_SPI SK6812_64p/64L/M_2020_24V_IP66

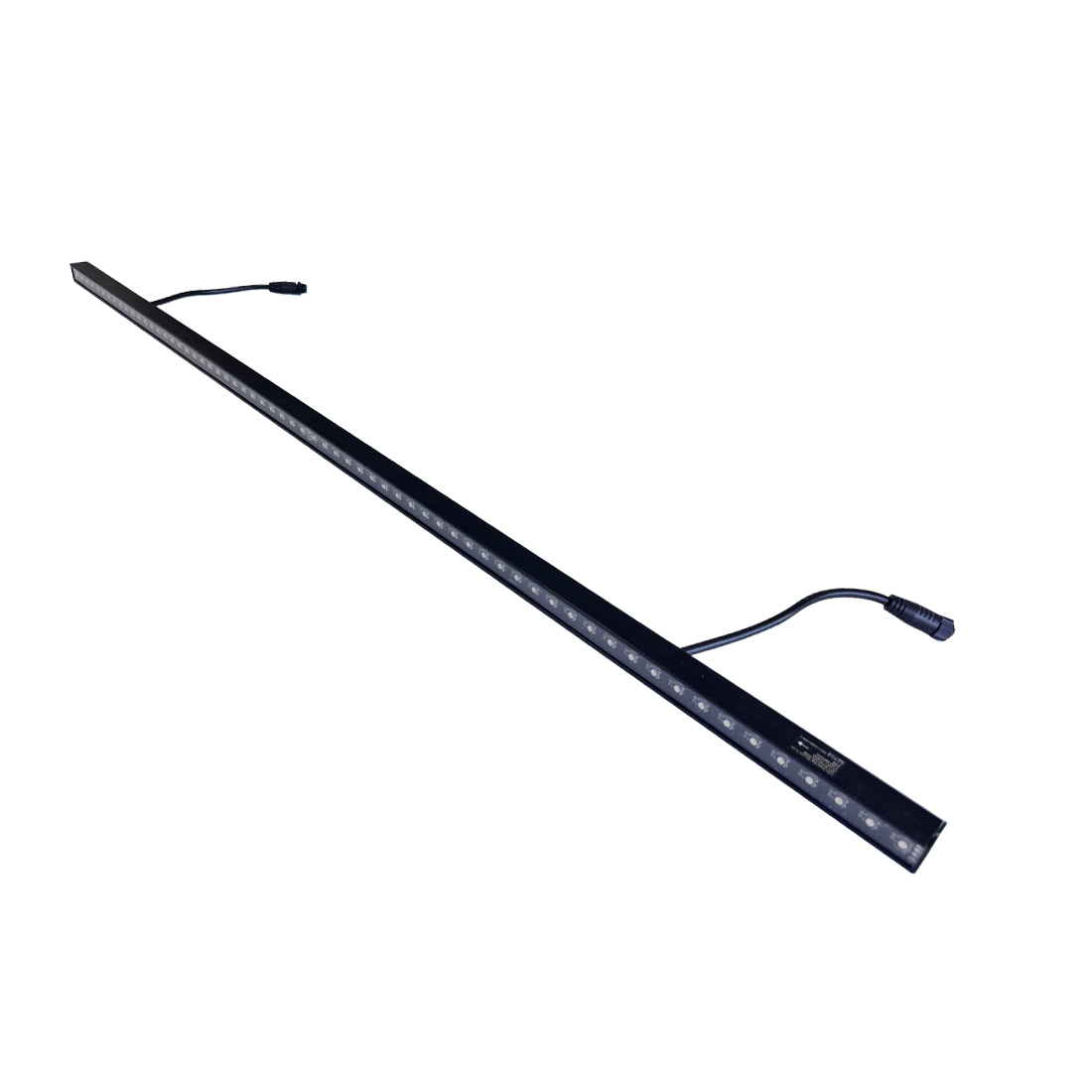

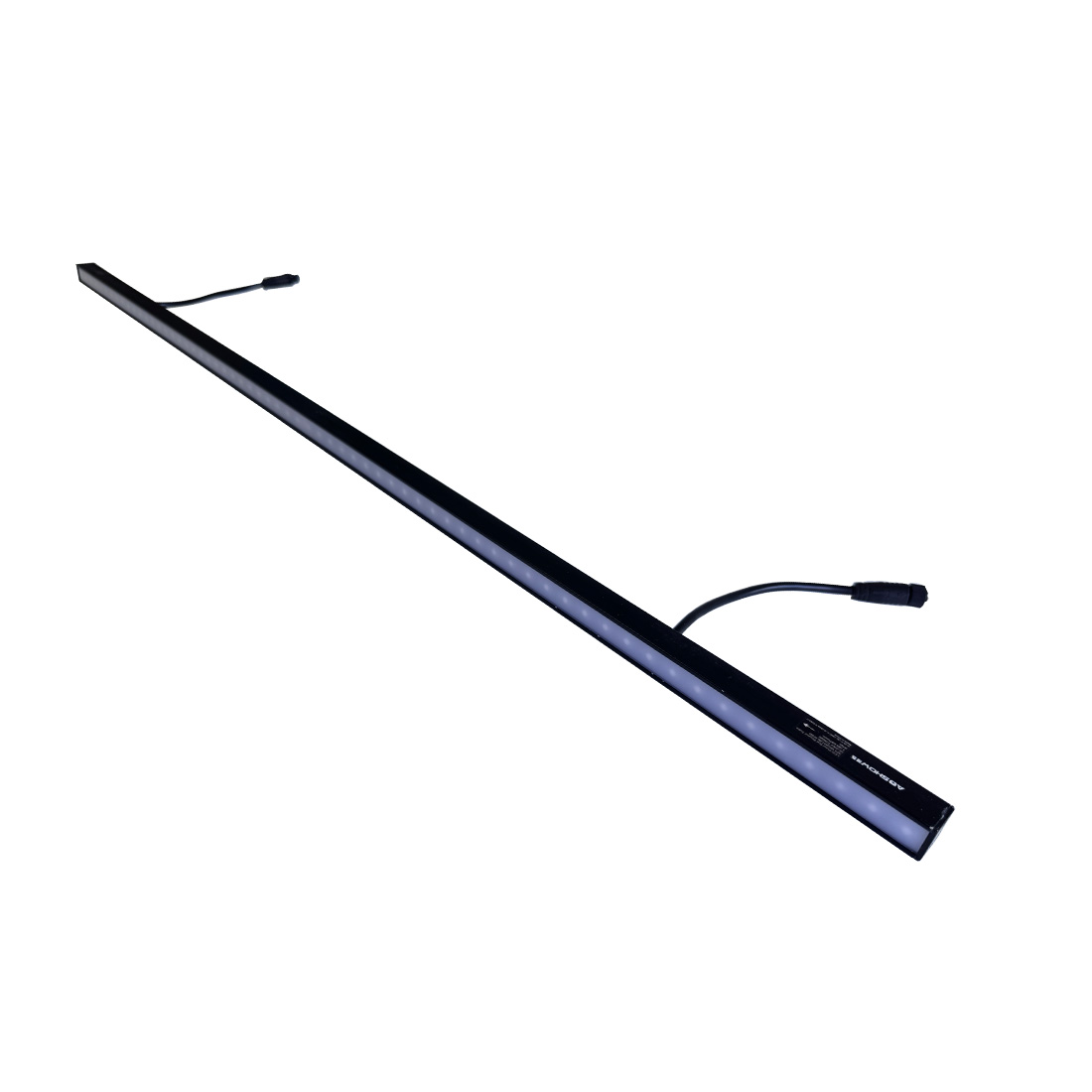

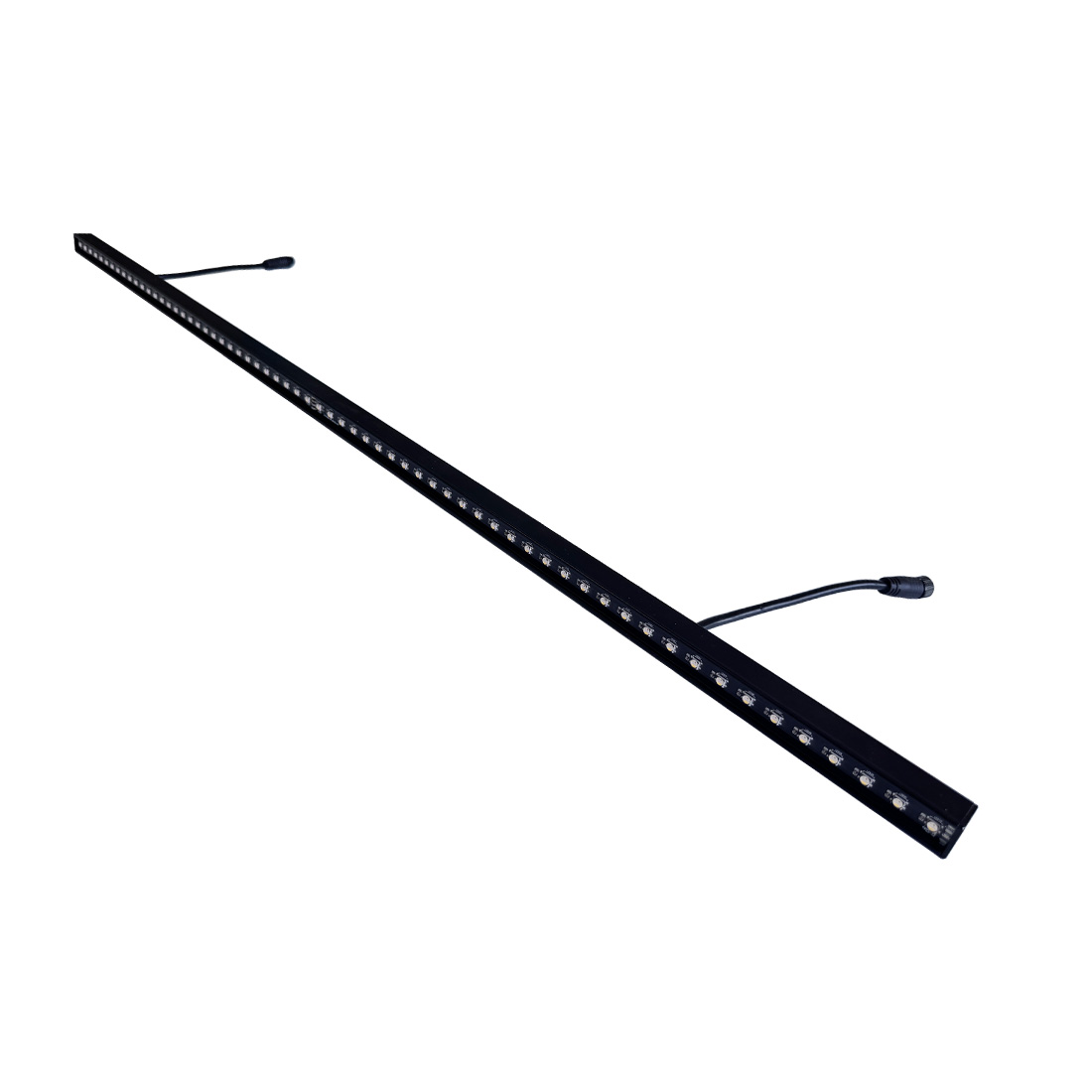

Product Overview: Rigid LED Pixel Bar

Technical Specifications

• Gray Level: 256
• Input Voltage: DC12V～DC24V～DC36V Wide voltage range
• Viewing Angle: 120°
• Signal Type: SPI
• IC Type: SK6812
• LED Type: SMD5050
• LED Color Options: Full color RGB or RGBW (White options: 3000K, 4500K, 6000K)
• Waterproof Rating: IP20 or IP66
• Lifetime: 50,000+ hours
• Connector: 4 Pins M12  Male and Female Connector 25CM

LEDs/ICs Quantity

• 0.5M Length: 32 LEDs / 32 pixels
• 1.0M Length: 64 LEDs / 64 pixels
• 1.5M Length: 96 LEDs / 96 pixels

Power Consumption

• 0.5M Length: 7.5 Watts
• 1.0M Length: 15 Watts
• 1.5M Length: 22.5 Watts

Physical Dimensions

• Bar Size: W20 x H20mm
• Length Options:
  • 0.5 meters
  • 1.0 meters
  • 1.5 meters max
  • OEM/ODM lengths available

Tube PC Cover Options

• Flat PC Cover: Black or Clear
• Round Tube / Square Tube: Black or Milky

Example Use Cases

• Stage Event Lighting: Enhances visual appeal with dynamic lighting effects.
• Night Club Lighting: Creates immersive and dynamic lighting environments, enhancing the overall atmosphere and experience in night clubs.
• Architectural Lighting: Highlights architectural features and creates stunning light displays on buildings.
• Retail and Commercial Displays: Draws attention to products and creates an engaging shopping experience.
• Art Installations: Ideal for creating eye-catching and innovative LED art pieces.

Installation Features

• Integrated Components:
  • Pixel Bars work with a PSAC box, integrating the power supply and Artnet controller for quick support of power and signal control.
• Quick Assembly:
  • Features a push-type spring connector design for fast disassembly and assembly.
  • Supports different connectors for DIY various shapes.
• Easy Setup:
  • Designed for fast installation with 4-pin Female and Male M12 connectors, suitable for both temporary and permanent setups.
• Flexible Cover Options:
  • Choose between black or clear flat PC covers, or black or milky round/square tubes to match the desired aesthetic.

1M -1

1M-2

1M-3

Flight Case：
